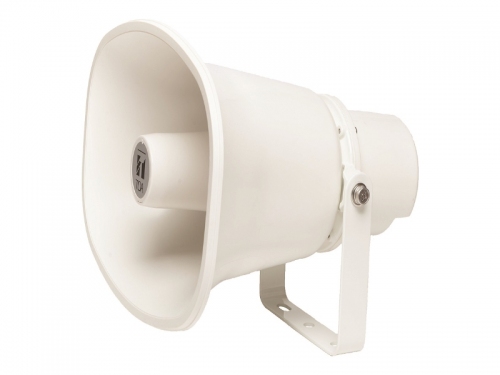

TOA POWERED HORN SPEAKER - ZH-P620S-AS Q7

Power Source

12V DC, 2A (DC Socket “+” Type A: 5.5 x 2.1mm)

Power Consumption

15W (1.25A) at Rated output
25W (2.10A) at Maximum output

Input

0 dB*, 10kΩ, Unbalanced (RCA plug)

Signal Gain

8, 16, 24, 32dB (Factory pre-set to 16dB)

Volume Adjustment

Internal volume control (Factory pre-set to max. position)

Sound Pressure Level

113 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level) Max. SPL (above 120dB)

Frequency Response

250 Hz - 10,000 Hz

Operating Temperature

-20 ℃ to +55 ℃ (must be free from dew condensation)

Dust/Water Protection

IP65

Finish

Horn Flare: HIPS resin, White (RAL 9010 equivalent)
Reflector Horn and Case: ABS resin, White (RAL 9010 equivalent)
Bracket, screws and bolts: Stainless steel

Cable Cord

Length: 2m Flying Lead (RCA plug) & DC socket ("+")

Dimensions

292 (W) × 230 (H) × 280 (D) mm

Weight

Approx. 1.8 kg

Option

AD-5000-2 (LTE24E-S2-1) AC Adapter
