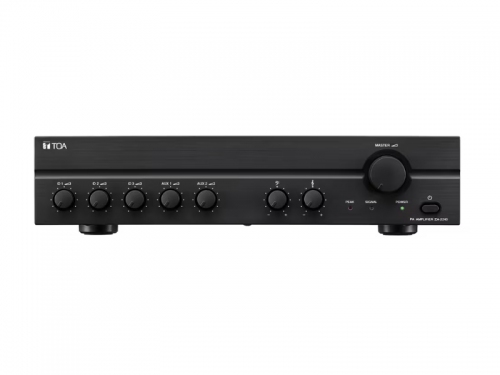

TOA POWER AMPLIFIER 240W - ZA-2240

Power Source

220 - 240 V AC, or 24V DC

Rated Output

240 W

Power Consumption

238 W (AC operation EN60065),
15 A (DC operation at rated output)

Frequency Response

50 - 20,000 Hz (±3 dB)

Distortion

Less Than 1% at 1 kHz, 1/3 rated power

Input

MIC 1 - 3: -60 dB* (1.0 mV), 600 Ω, balanced, phone jack
AUX 1,2: -20 dB* (100 mV), 10 kΩ, unbalanced, RCA pin jack

Output

Speaker out: Balanced (floating)
High impedance: 42 Ω (100 V), 21 Ω (70 V)
Low impedance: 4 Ω (31 V)
Rec out: 0 dB* (1.0V), 600 Ω, unbalanced, RCA pin jack

Phantom Power

DC +21 V (MIC 1)

S/N Ratio

More Than 60 dB

Tone Control

Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz

Muting

MIC 1: Mutes other input signals by 0 - 30 dB attenuation

Indicator

Power LED, signal LED, peak LED

Finish

Panel: ABS resin, black
Case: Steel plate, black

Dimensions

420 (W) × 101 (H) × 360 (D) mm (16.5" × 4.0" × 14.2")

Weight

13.2 kg (29.1 lb)
