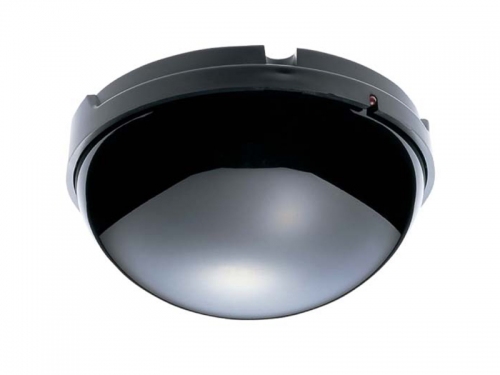

TOA INFRARED TRANSMITTER/RECEIVER (CE VERSION) - TS-905

Power Source

24 V DC (supplied from the Central unit)

Current Consumption

Max. 150 mA

Infrared Emitter/Detector

Wavelength

870 nm (AM: Brightness modulation)

Modulation Method

Frequency modulation

Carrier Frequency

Transmission: Audio channel 1: 7.35 MHz
Audio channel 2: 8.10 MHz
Audio channel 3: 8.55 MHz
Audio channel 4: 9.15 MHz
Control channel: 6.45 MHz
Reception: Base language channel: 1.95 MHz
Translation language channel: 2.25 MHz

Acceptance Angle

Vertical: 150゜ (75゜ + 75゜), Horizontal: 360゜

Emission Angle

Vertical: 150゜ (75゜ + 75゜), Horizontal: 360゜

Communication Area

Approx. 6 - 7 m (19.69 - 22.97 ft) in radius from the point underneath the unit
(Ceiling height: 2.5 - 4.5 m (8.2 - 14.76 ft))

Connection Terminal

BNC jack

LED Indicator

Power

Operating Temperature

0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)

Operating Humidity

90 %RH or less (no condensation)

Finish

Dome: PC resin, visible light cut filter Base: ABS resin, black

Dimensions

Ø120 × 71.3 (H) mm (4.72" × 2.81")

Weight

230 g (0.51 lb) (unit only)

Accessory

Mounting bracket…1, Stand mounting bracket…1,
Stand mounting bracket attaching screw…3

Option

Microphone stand (The mounting thread size must be U5/16.)
