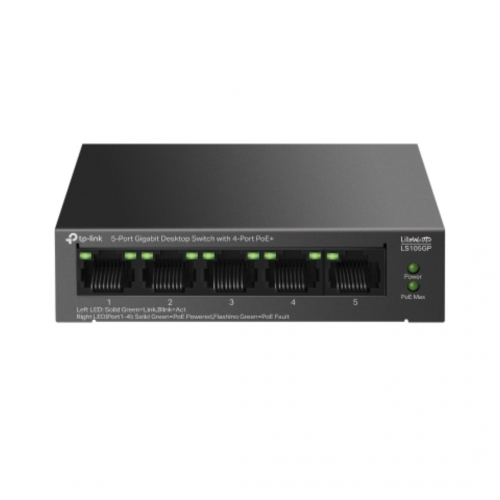

TP-LINK LS105GP - 5-PORT GIGABIT DESKTOP SWITCH WITH 4-PORT POE+

Kategori

Spesifikasi

HARDWARE FEATURES

Interface

5 × 10/100/1000 Mbps RJ45 Ports

Ports 1–4 mendukung IEEE 802.3af/at PoE+

AUTO Negotiation

AUTO MDI/MDIX

Network Media

10BASE-T: UTP Cat 3/4/5 (maks. 100 m), STP 100Ω (maks. 100 m)

100BASE-TX: UTP Cat 5/5e (maks. 100 m), STP 100Ω (maks. 100 m)

1000BASE-T: UTP Cat 5/5e/6 atau lebih (maks. 100 m), STP 100Ω (maks. 100 m)

Jumlah Kipas

Fanless

Metode Instalasi

Desktop

Wall Mounting

Catu Daya

Adaptor Daya Eksternal

Output: 53.5 V DC / 1.31 A

PoE Ports (RJ45)

Standar: IEEE 802.3af/at

PoE Ports: Ports 1–4

Daya PoE Maksimum: Hingga 30 W per port

Total Power Budget: 65 W

Dimensi (W×D×H)

99.8 × 98 × 25 mm

(3.9 × 3.9 × 1.0 in.)

Konsumsi Daya Maks.

4 W (tanpa PD, 220 V / 50 Hz)

74.46 W (dengan 65 W PD terhubung)

Disipasi Panas Maks.

13.6 BTU/jam (tanpa PD)

253.16 BTU/jam (dengan 65 W PD)

PERFORMANCE

Switching Capacity

10 Gbps

Packet Forwarding Rate

7.44 Mpps

MAC Address Table

2K

Jumbo Frame

16 KB

SOFTWARE FEATURES

Fitur Lanjutan

Extend Mode Button (Ports 1–2, hingga 250 m PoE & data)

PoE Auto Recovery Button (Ports 1–4)

Kompatibel dengan IEEE 802.3af/at PD

MAC Address Auto-Learning & Auto-Aging

IEEE 802.3x Flow Control

802.1p / DSCP QoS

IGMP Snooping

Green Technology

Metode Transmisi

Store-and-Forward

OTHERS

Sertifikasi

FCC, CE, RoHS

Isi Paket

LS105GP

Power Adapter

Installation Guide

Lingkungan Operasi

Suhu Operasi: 0 – 40 ℃ (32 – 104 ℉)

Suhu Penyimpanan: -40 – 70 ℃ (-40 – 158 ℉)

Kelembapan Operasi: 10 – 90% RH (Non-condensing)

Kelembapan Penyimpanan: 5 – 90% RH (Non-condensing)
