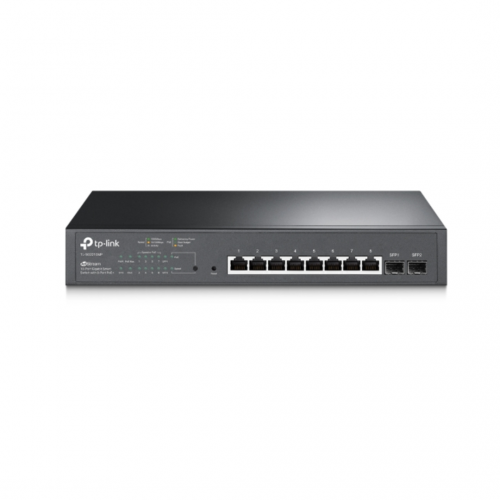

TP-LINK TL-SG2210MP - JETSTREAM 10-PORT GIGABIT SMART SWITCH WITH 8-PORT POE+

Kategori

Spesifikasi

Model

TL-SG2210MP

Standards & Protocols

IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.3af, 802.3at, 802.3az, 802.1d, 802.1s, 802.1w, 802.1q, 802.1x, 802.1p

Interface

8 × Gigabit RJ45 (10/100/1000 Mbps) PoE+Auto-Negotiation / Auto MDI/MDIX2 × 100/1000 Mbps SFP Slots

Network Media

10BASE-T: UTP/STP Cat 3/4/5 (maks. 100 m)100BASE-TX / 1000BASE-T: UTP/STP Cat 5/5e atau lebih (maks. 100 m)100BASE-FX: MMF, SMF1000BASE-X: MMF, SMF

Fan Quantity

1 Fan

Physical Security Lock

Ya

Power Supply

100–240 V AC, 50/60 Hz

PoE Standard

IEEE 802.3af / 802.3at (PoE+)

PoE Ports

8 × RJ45 PoE+

Total PoE Power Budget

150 W

Dimensi (W × D × H)

11.6 × 7.1 × 1.7 inci (294 × 180 × 44 mm)

Mounting

Rackmount / Desktop

Max. Power Consumption

12.2 W (tanpa PD)173.9 W (dengan 150 W PD)

Max. Heat Dissipation

41.63 BTU/h (tanpa PD)539.35 BTU/h (dengan 150 W PD)

Switching Capacity

20 Gbps

Packet Forwarding Rate

14.9 Mpps

MAC Address Table

8K

Packet Buffer Memory

4.1 Mbit

Jumbo Frame

9 KB

QoS

802.1p CoS / DSCP8 Priority QueuesScheduling: SP & WRRBandwidth Control (Port/Flow-based Rate Limit)Storm Control

L2 & L2+ Features

DHCP Relay (VLAN & L2)Link Aggregation (Static & LACP, hingga 8 grup)STP / RSTP / MSTP + SecurityLoopback DetectionFlow Control (802.3x)Port & CPU MirroringDLDPLLDP / LLDP-MED

Multicast

IGMP Snooping v1/v2/v3 + QuerierMVRMLD Snooping v1/v2IPv4/IPv6 Multicast Groups

Advanced Features

Automatic Device DiscoveryBatch Configuration & Firmware UpgradeNetwork MonitoringEvent WarningUnified ConfigurationReboot Schedule

IPv6 Support

Dual Stack IPv4/IPv6IPv6 Static Routing & ACLMLD SnoopingND, MTU Discovery, ICMPv6DHCPv6, Ping6, Tracert6, Telnet v6IPv6 SNMP, SSH, SSL, HTTP/HTTPS, TFTP

VLAN

Hingga 4K VLAN Groups802.1Q Tag VLANMAC VLANProtocol VLANGVRPVoice VLAN

Access Control List (ACL)

Hingga 230 ACL entriesMAC / IP / IPv6 / Combined ACLTime-based ACLAction: Permit/Deny, Mirror, Rate Limit, Redirect, QoS Remark

Security

AAA & 802.1X (Port/MAC-based, RADIUS)IP/IPv6-MAC BindingDHCP Snooping / ARP Inspection / ND DetectionIP & IPv6 Source GuardDoS ProtectionPort Security (hingga 64 MAC/port)HTTPS (SSLv3/TLS 1.2)SSH v1/v2

MIB Support

MIB II, Bridge, P/Q-BridgeRADIUS Client MIBRMON (1,2,3,9)TP-Link Private MIB

Omada App

Ya

Centralized Management

Omada Cloud-Based ControllerOC300 / OC200Omada Software Controller

Cloud Access

Ya

Zero-Touch Provisioning

Ya (v1, v3 ke atas)

Management Features

Web GUI, CLI (Telnet)SNMP v1/v2c/v3RMON, SDM TemplateDHCP/BOOTP ClientDual Image & ConfigCPU MonitoringCable DiagnosticsEEE, SNTP, System Log

Certification

CE, FCC, RoHS

Package Contents

TL-SG2210MPPower CordInstallation GuideRackmount KitRubber Feet

System Requirements

Windows 98SE/NT/2000/XP/Vista/7/8/10macOS, NetWare, UNIX, Linux

Operating Temperature

0–50 °C

Storage Temperature

−40–70 °C

Operating Humidity

10–90% RH (non-condensing)

Storage Humidity

5–90% RH (non-condensing)
