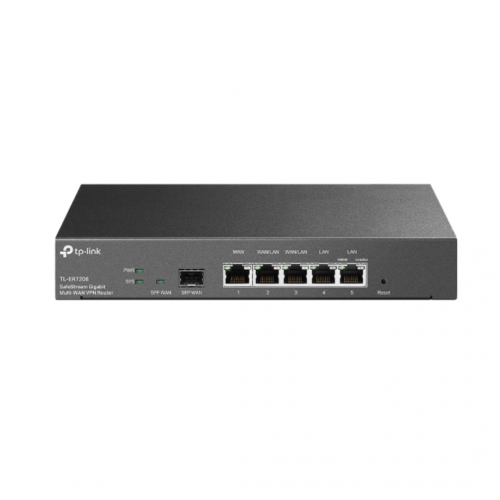

TP-LINK SAFESTREAM GIGABIT MULTI-WAN VPN ROUTER - TL-ER7206

Kategori

Spesifikasi

SECURITY

Access Control

Source / Destination IP Based Access Control

Filtering

Web Group Filtering§, URL Filtering, Web Security§

ARP Inspection

Sending GARP Packets§, ARP Scanning§, IP-MAC Binding§

Attack Defense

TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN / Xmas / Null)
Block Ping from WAN

HARDWARE FEATURES

Standards & Protocols

IEEE 802.3 / 802.3u / 802.3ab / 802.3z / 802.3x / 802.1Q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP/HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Interface

1 × Fixed Gigabit SFP WAN Port
1 × Fixed Gigabit RJ45 WAN Port
2 × Fixed Gigabit RJ45 LAN Ports
2 × Changeable Gigabit RJ45 WAN/LAN Ports

Network Media

10BASE-T: Cat3/4/5 UTP (≤100 m)
100BASE-TX: Cat5/5e UTP (≤100 m)
1000BASE-T: Cat5/5e/6 UTP (≤100 m)

Button

Reset Button

Power Supply

100–240 V ~ 50/60 Hz

Flash Memory

SPI 4 MB + NAND 128 MB

DRAM

512 MB

LED Indicators

PWR, SYS, SFP WAN, WAN (Speed/Link/Act), LAN (Speed/Link/Act)

Dimensions (W×D×H)

226 × 131 × 35 mm

Mounting

Desktop

Max Power Consumption

8.95 W

PERFORMANCE

Concurrent Sessions

150000

New Sessions / Second

5500

NAT Throughput (Static IP)

940.3 Mbps / 940.2 Mbps

NAT Throughput (DHCP)

940.3 Mbps / 940.4 Mbps

NAT Throughput (PPPoE)

939.7 Mbps / 937.9 Mbps

NAT Throughput (L2TP)

918.0 Mbps / 917.9 Mbps

NAT Throughput (PPTP)

918.9 Mbps / 914.7 Mbps

IPsec VPN Throughput (AES-256)

291.6 Mbps

L2TP VPN Throughput

Unencrypted: 1360.3 Mbps
Encrypted: 202.3 Mbps

PPTP VPN Throughput

Unencrypted: 1379.3 Mbps
Encrypted: 115.6 Mbps

Packet Forwarding Rate (1518 Byte)

81,274 pps

BASIC FUNCTIONS

WAN Connection Types

Static IP, Dynamic IP, PPPoE, PPTP, L2TP

MAC Clone

Modify WAN/LAN MAC Address†

DHCP

DHCP Server
DHCP Address Reservation
Multi-IP Interfaces*
Multi-Net DHCP*

IPv6

Developing‡

VLAN

IEEE 802.1Q VLAN

IPTV

IGMP v2 / v3 Proxy

ADVANCED FUNCTIONS

ACL

IP / Port / Protocol / Domain Name Filtering

Advanced Routing

Static Routing, Policy Routing

Bandwidth Control

IP/Port-based Bandwidth Control
Guaranteed & Limited Bandwidth

Load Balance

Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing§, Failover)
Online Detection

NAT Features

One-to-One NAT§, Multi-Net NAT, Virtual Server, Port Triggering§, NAT-DMZ, ALG, UPnP

Security

SPI Firewall, VPN Passthrough, ALG, DoS Defense, Ping of Death, Local Management

Session Limit

IP-based Session Limit

VPN

IPsec VPN

100 IPsec VPN Tunnels
LAN-to-LAN & Client-to-LAN
Main / Aggressive Mode
DES / 3DES / AES128/192/256
IKEv1/v2*, MD5 / SHA1
NAT-T, DPD, PFS

PPTP VPN

PPTP VPN Server
10 Clients, 50 Tunnels
MPPE Encryption

L2TP VPN

L2TP VPN Server
10 Clients, 50 Tunnels
L2TP over IPsec

OpenVPN

OpenVPN Server*
10 Clients*
50 Tunnels*

AUTHENTICATION

Web Authentication

No Authentication
Simple Password*
Hotspot (Local User / Voucher* / SMS* / Radius*)
External Radius Server
External Portal Server*
Facebook*

MANAGEMENT

Omada App

Yes

Centralized Management

Omada Cloud-Based Controller
OC300, OC200
Omada Software Controller

Cloud Access

Yes (via OC300 / OC200 / Cloud Controller / Software Controller)

Services

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

Maintenance

Web & Remote Management
Config Export/Import
SNMP v1/v2c/v3*
Diagnostics (Ping, Traceroute)§
NTP Sync§
Syslog

Management Features

Auto Device Discovery
Network Monitoring
Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal
ZTP (Zero-Touch Provisioning)**

OTHERS

Certification

CE, FCC, RoHS

Package Contents

TL-ER7206
Power Cord
Quick Installation Guide

System Requirements

Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 8.1 / 10
macOS, NetWare, UNIX, Linux

Operating Temperature

0 – 40 °C

Storage Temperature

-40 – 70 °C

Operating Humidity

10% – 90% RH (non-condensing)

Storage Humidity

5% – 90% RH
