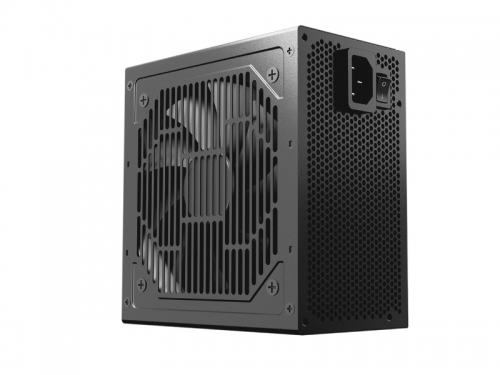

PCCOOLER PSU KF650 650W 80+ WHITE ACTIVE PFC FLAT CABLES

Model No.

KF650

Type

ATX2.4

Physical Dimension

140×150×86mm(L×W×H)

Output Power

650W

Color

Black

Certification

80PLUS White

Efficiency

≥86% Under Typical Load(50% Loading)

Topology

Active PFC+Double Tube Forward

AC Input

200-240VAC

Protection

OVP/SCP/OPP

Hold Up Time

≥12ms(75% Load)

Safety

CB/CCC/CE/UKCA/EAC/RCM/TUV

Environmental Compliance

Rohs/ERP2010

Fan Bearing Type

HYB (Long Life Sleeve)

Fan Size

120mm

Fan Work Mode

Thermal Control

Capacitors

Taiwan Bulk Capacitor

Operating Temperature

0~40℃

MTBF

100,000 Hours

Modularity

Non-modular

Cable Type

Black Flat Cable

Output Wire

Main Power Connector (20+4)Pin×1 : 1 x 550mm / CPU (4+4) Pin x 2 : 1 x 610mm+150mm / PCI-E (6+2) Pin x 1 : 2 x 510mm SATA x 3 + 4 Pin Peripheral x 1 : 2 x 450 + 150 + 150 + 150mm

Warranty

3 Years
