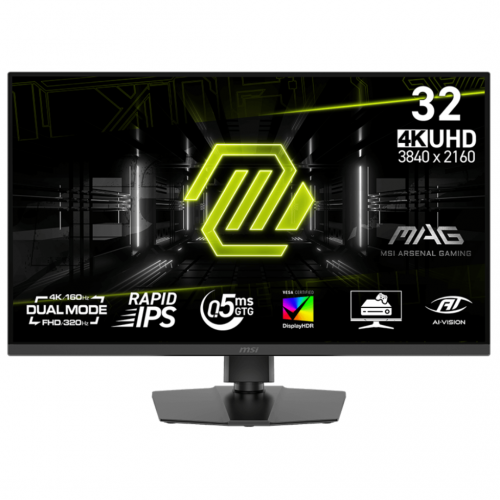

MSI MAG 322URDF E16 31.5 INCH DUAL MODE (4K UHD 160HZ OR FHD 320HZ) RAPID IPS HDR400 GAMING MONITOR

Panel Size

31.5"

Active Display Area (mm)

695.04 (H) x 390.96 (V)

Curvature

Flat

Panel Type

Rapid IPS

Panel Resolution

Normal: 3840 x 2160 (UHD)
Dual Mode: 1920 x 1080 (FHD)

Pixel Pitch (H x V)

0.181 (H) x 0.181 (V)

Aspect Ratio

16:9

Brightness (nits)

SDR: 400 cd/m² (Typ.)
HDR: 450 cd/m² (Peak)

Contrast Ratio

1000:1 (Typ.)

DCR

100000000:1

Signal Frequency

Normal: 146.3353.1KHz(H) / 48160Hz(V)
Dual Mode: 352.2356.1KHz(H) / 48320Hz(V)

ACTIVATED RANGE

Normal: 48160Hz<br>Dual Mode: 48320Hz

Refresh Rate

Normal: 160Hz
Dual Mode: 320Hz

Response time

0.5ms (GtG, Min.)

DYNAMIC REFRESH RATE TECHNOLOGY

Adaptive-Sync

HDR Support

VESA DisplayHDR 400

Video ports

1 x DisplayPort 1.4a (HBR3)
2 x HDMI™ 2.1 (4K@160Hz)

USB ports

2 x USB 2.0 Type-A
1 x USB 2.0 Type-B

Audio ports

1x Headphone-out

Viewing Angle

178° (H) / 178° (V)

Adobe RGB / DCI-P3 / sRGB

93% / 99% / 131% (CIE1976 Standard)

Surface Treatment

Anti-glare

Display Colors

1.07B, 10 bits (8 bits + FRC)

Console Mode

Supported Resolution & Refresh Rate:
1080p: 60Hz and 120Hz
1440p: 60Hz and 120Hz
2160p: 60Hz and 120Hz

HDMI™ CEC: Supported
VRR: PS5 and Xbox Supported

Power Type

Internal Power Board

Power Input

100~240V, 50/60Hz

Adjustment (Tilt)

-5° ~ 15°

Adjustment (Swivel)

-30° ~ 30°

Adjustment (Pivot)

-10° ~ 10°

Adjustment (Height)

0~110 mm

Kensington Lock

Yes

VESA Mounting

100 x 100 mm

Dimension with Stand (W x D x H)

714 x 227.8 x 564.5 mm (28.1 x 8.9 x 22.2 inch)

Dimension without Stand (W x D x H)

714 x 72.9 x 421.3 mm (28.1 x 2.8 x 16.5 inch)

Weight (NW / GW)

9 kg (19.8 lbs) / 13 kg (28.6 lbs)

Carton Dimension (W X D X H)

985 x 183 x 513 mm (38.7 x 7.2 x 20.1 inch)

Accessories

1x DisplayPort Cable (1.4a), 1x USB Type-B to A Cable, 1x Power Cord (C13), 1x Quick Guide, 4x Stand Screw

Note

HDMI™: Normal (UHD): 3840 x 2160 (Up to 160Hz)
Dual (FHD): 1920 x 1080 (Up to 320Hz)
DisplayPort: Normal (UHD): 3840 x 2160 (Up to 160Hz)
Dual (FHD): 1920 x 1080 (Up to 320Hz)
Support: HDMI™ CEC, PIP/PBP; Non Support: KVM
