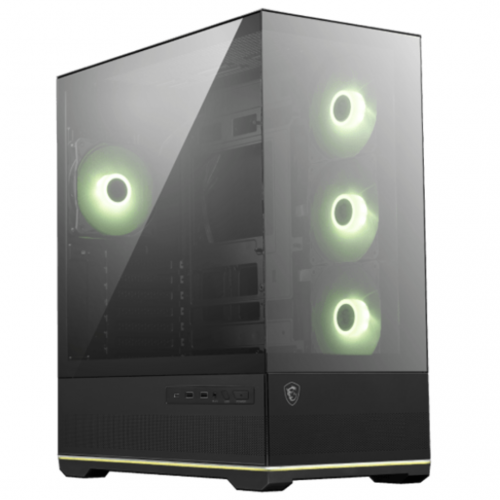

MSI MAG PANO 110R PZ GAMING CASE

Product Name

MAG PANO 110R PZ / WHITE

Case Form Factor

Mid-Tower

Motherboard Form Factor Support

Regular: ATX / Micro-ATX / Mini-ITX
Back-connect: ATX / Micro-ATX

I/O Ports

1 x USB 20Gbps (Type-C)
2 x USB 5Gbps (Type-A)
1 x Audio-Out / Mic-In
1 x LED Button
1 x Power Button

Drive Mount Support

2 x 2.5”
2 x 3.5”
2 x 2.5"/3.5" combo

Expansion Slots

7

Maximum GPU Length

400 mm / 15.75 inches

Maximum CPU Cooler Height

160 mm / 6.30 inches

Power Supply Support

ATX

Maximum PSU Length

200 mm / 7.87 inches

Fan Size Support

Top: 3 x 120 mm / 2 x 140 mm
Front: Not Supported
Rear: 1 x 120 mm
Side: 3 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm (above PSU shroud)

Pre-installed Fan Size

Side: 3 x 120 mm
Rear: 1 x 120 mm

Pre-installed Fan Type

Side: 3 x ARGB Reverse Blade Fans
Rear: 1 x ARGB Fan

Radiator Size Support

Top: 120 / 140 / 240 / 280 / 360 mm
Rear: 120 mm
Front / Side / Bottom: Not Supported

Dimensions (DxWxH)

420 x 225 x 485 mm
16.54 x 8.86 x 19.09 inches

Front Panel Connection

1 x USB 20Gbps (Type-C)
2 x USB 5Gbps (Type-A)
Mic-In / Audio-Out
LED Button
Power Button
