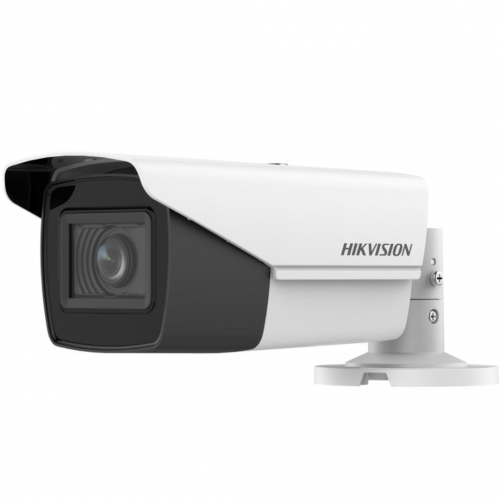

HIKVISION DS-2CE19U1T-IT3ZF - 4K MOTORIZED VARIFOCAL BULLET CAMERA

Camera

Min. Illumination

Color: 0.01 Lux @ (F2.4, AGC ON), 0 Lux with IR

Image Sensor

8.29 megapixel progressive scan CMOS

Max. Resolution

3840 (H) × 2160 (V)

Shutter Time

PAL: 1/12.5 s to 1/50,000 s; NTSC: 1/15 s to 1/50,000 s

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°

Lens

Lens Type

2.7 mm to 13.5 mm motorized vari-focal lens

Focal Length & FOV

Horizontal FOV: 108.1° to 45.6°

Lens Mount

Φ14

Illuminator

Supplement Light Type

IR

Supplement Light Range

Up to 80 m

Smart Supplement Light

Yes


Image Settings

Brightness; Mirror; Sharpness; AGC

Frame Rate

TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 8M@12.5fps, 8M@15fps
CVBS: 960H P/N

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

BLC; HLC

Noise Reduction

2D DNR

White Balance

Auto/Manual

Interface

Video Output

1 HD analog output; Switchable TVI/AHD/CVI/CVBS

General

Power

9 VDC to 15 VDC
*You are recommended to use one power adapter to supply the power for one camera.
Max. 8.6 W

Material

Front cover: Metal, Main body: Plastic

Dimension

84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10")

Approx. Weight

695 g (1.53 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication

HIKVISION-C

Approval

Protection

IP67
