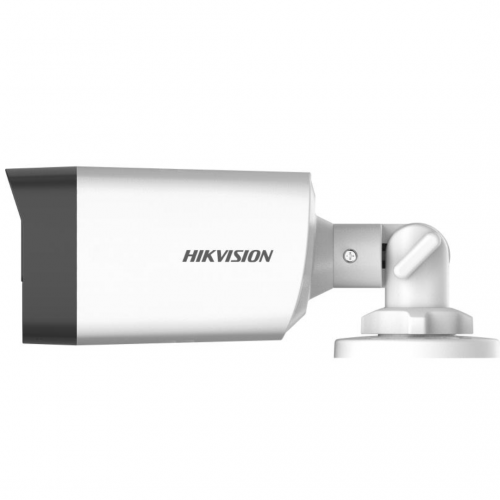

HIKVISION DS-2CE17H0T-IT5F(C) - 5 MP FIXED BULLET CAMERA

Camera

Item

Detail

Image Sensor

5 MP CMOS

Max. Resolution

2560 (H) × 1944 (V)

Min. Illumination

0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50,000 s

NTSC: 1/30 s to 1/50,000 s

Day & Night

ICR

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°

Signal System

PAL/NTSC

Lens

Item

Detail

Lens Type

3.6 mm, 6 mm fixed lens

Focal Length & FOV

3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112°

6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°

Lens Mount

M12


Item

Detail

Image Parameters Switch

STD/HIGH-SAT

Image Settings

Brightness, Sharpness, Mirror, Smart IR

Frame Rate

TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps

AHD: 5M@20fps, 4M@30fps, 4M@25fps

CVI: 4M@30fps, 4M@25fps

CVBS: PAL/NTSC

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

DWDR/BLC/HLC/Global

Noise Reduction

Yes

White Balance

Auto/Manual

AGC

Yes

Interface

Item

Detail

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Item

Detail

Material

Front Cover: Metal

Main Body: Plastic

Dimension

78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53")

Weight

Approx. 330 g (0.73 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication

HIKVISION-C

Language

English

Power Supply

12 VDC ± 25%

Consumption

Max. 5 W

IR Range

Up to 80 m

Approval

Protection

IP67
