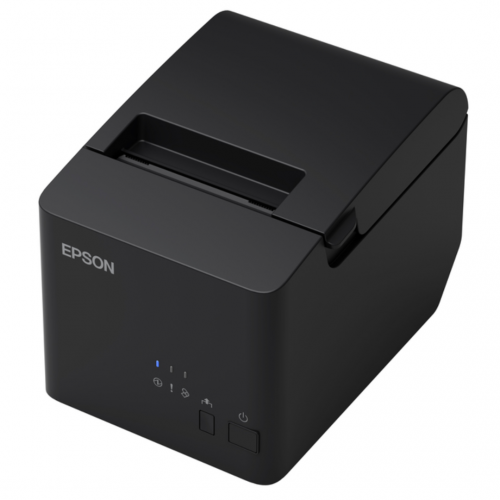

EPSON TM-T82X PRINTER KASIR PORT USB SERIAL POS

Spesifikasi

Detail

Metode Cetak

Thermal Line Printing

Resolusi Cetak

203 × 203 dpi

Kecepatan Cetak

Maks. 200 mm/s

Font

9 × 17 / 12 × 24

Font Hanji

24 × 24

Font Thai

9 × 35 / 12 × 46 (Thai 1 pass)

Karakter per Inci

22.6 cpi / 16.9 cpi

Karakter per Inci Hanji

7.8 cpi

Ukuran Karakter

0.88 × 2.13 mm / 1.25 × 3 mm

Ukuran Karakter Hanji

3 × 3 mm

Ukuran Karakter Thai

0.88 × 4.38 mm / 1.25 × 5.76 mm

Character Set

95 Alphanumeric, 18 International Sets

Code Pages

128 × 43 pages (termasuk user-defined)

Chinese Characters

GB18030-2000 (28,553 karakter)

Barcode Support

UPC-A, UPC-E, EAN13, EAN8, Code39, ITF, Codabar, Code93, Code128, GS1-128, GS1 DataBar

2D Barcode

PDF417, QR Code, MaxiCode, GS1 DataBar 2D, Composite Symbology

Characters Per Line

22.6 cpi / 16.9 cpi

Data Buffer

4 KB / 45 byte

Receive Data Buffer

4 KB / 45 byte

Paper Width

79.5 ± 0.5 mm / 57.5 ± 0.5 mm

Roll Diameter

Maks. 83 mm

Interface

USB Built-in + UIB (Serial / Parallel), Ethernet

Supported OS

Windows, Mac, Linux

Mobile SDK

ePOS SDK untuk Android & iOS

Optional Feature

External Buzzer

Auto Cutter Life

± 1.5 juta potongan

Printer Mechanism Life

± 15 juta baris

MTBF

360.000 jam

MCBF

60.000.000 baris

Power Supply

DC 24V ± 7%

Power Consumption

Operasi ± 1.5 A

Standby Consumption

± 0.1 A

Dimensi

199 × 140 × 146 mm

Berat

± 1.7 kg

Safety Standard

IEC62368-1

Additional Features

Automatic Paper Reduction, Automatic Paper Cut with Logo Printing, QR Code Quick Pairing (Ethernet Model)

Standard Accessories

Roll paper (sample), CD driver & software, Setup guide, Power switch cover, Waterproof cover, Wall mount bracket, Rubber feet, Control panel sheet, 58mm paper guide, External power supply (PS-180)
