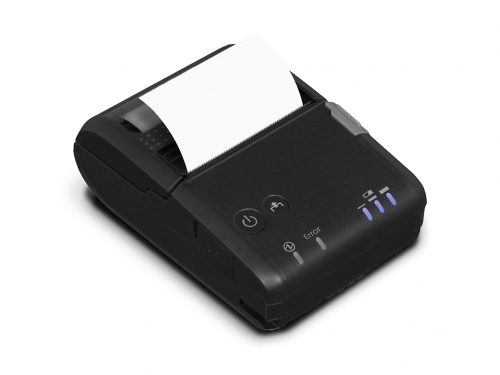

EPSON TM-P20 MOBILE PRINTER - BLUETOOTH

Model Printer

Epson TM-P20 (Portable Receipt Printer)

Metode Cetak

Thermal Line Printing

Resolusi Cetak

203 dpi

Dot / Line

384 dots

Font Cetak

Font A: 12×24 (32 cpl) • Font B: 9×24 (42 cpl, Default) • Font C: 9×17 (42 cpl) • Font D: 10×24 (38 cpl) • Font E: 8×16 (48 cpl)

Ukuran Karakter (W × H)

A: 1.5×3.0 mm • B: 1.12×3.0 mm • C: 1.12×2.1 mm • D: 1.25×3.0 mm • E: 1.0×2.0 mm

Set Karakter

95 Alfanumerik, 18 Internasional, 128×43 Grafik

Barcode 1D

UPC-A, UPC-E, JAN8/EAN8, JAN13/EAN13, ITF (Interleaved 2 of 5), CODABAR (NW-7), CODE39, CODE93, CODE128, GS1-128, GS1 DataBar (Omnidirectional, Truncated, Limited, Expanded)

Barcode 2D

PDF417, DataMatrix, QR Code, Maxi Code, Composite, Aztec

Buffer Data

4000 bytes

ROM

64 MB

NV Area

User NV: 1 KB • NV Graphics: 384 KB

Audible Alert

Programmable Buzzer

Indikator LED

Status Daya, Level Baterai, Kondisi Error

Sensor

Paper End, Cover Open, BM Sensor

Konektivitas / Antarmuka

- Wi-Fi: 802.11b/g/n (2.4GHz) & 802.11a/n (5GHz)
- Bluetooth 3.0 (EDR Supported)

Kemudahan Koneksi (Easy Setting)

Bluetooth: NFC / Barcode • Wi-Fi: NFC / Barcode / AdHOC Mode

Perangkat Lunak (Software)

TM-P20 Utility, EpsonNet Config, EpsonNet Simple Viewer, TM-P20 Remote Configuration Tool, TM Bluetooth Connector, Built-In Configuration Page

Aksesori Standar

Roll Paper x1, CD-ROM (Driver, Utility, Manual), Setup Guide, Battery, Printer Charger, Belt Clip

Opsi Pabrik (Factory Options)

Single Printer Charger/Cradle (OT-SC20), Battery Pack (OT-BY20), Padded Case (OT-PC20), Battery Spacer (OT-BS20)

Media Cetak (Kertas Gulung)

57.5 ± 0.5 mm (Lebar) × Ø40.4 mm

Daya dan Pengisian

- Pengisian dengan Adaptor AC (3 jam) atau Charger Eksternal (2,5 jam)
- Tegangan: DC dari baterai internal

Daya Tahan Baterai

Hingga 6 jam (Wi-Fi) • Hingga 8 jam (Bluetooth)

Fitur Hemat Daya

Auto Power-off, Wi-Fi Power Saving

Keandalan (Reliability)

MTBF: 120.000 jam • MCBF: 16.000.000 baris • Umur Mekanisme: 10 juta baris

Dimensi (P × L × T)

79.0 × 119.8 × 43.6 mm (termasuk belt clip)

Berat

Wi-Fi Model: ±221 g • Bluetooth Model: ±212 g (termasuk baterai, tanpa kertas & charger)

Warna

Epson Hitam (EBCK)

Lingkungan Operasional

Suhu: 10–50°C (Bluetooth) / 0–50°C (Wi-Fi) • Kelembapan: 10–90% RH
