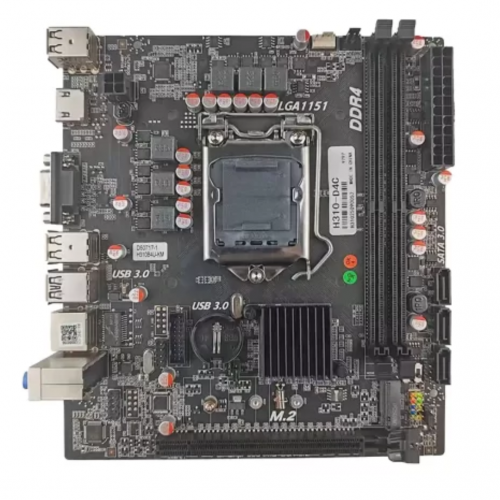

DIGITAL ALLIANCE H310 (LGA1151, H310, DDR4, USB3.2, SATA3)

CPU SUPPORT

Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
• Supports CPU up to 95W
• Supports Intel® Turbo Boost 2.0 Technology

POWER DESIGN

CPU Power: 6 Phase
Memory Power: 2 Phase

CHIPSET

INTEL H310

DISPLAY

Integrated Graphics Dependent on installed CPU
• 1 × HDMI, max resolution up to 4K × 2K (4096×2160) @ 30Hz
• 1 × D-Sub, max resolution up to 1920×1200 @ 60Hz

MEMORY

2 × SO-DIMM DDR4
Support Dual Channel 1866 / 2133 / 2400 MHz DDR4 1.2V
Max Support up to 32GB

BIOS

AMI UEFI BIOS

EXPANSION SLOTS

1 × M.2 Socket (M Key)
Supports 2230 / 2242 / 2260 / 2280 M.2 SATA3 6.0 Gb/s module

STORAGE

3 × SATA3 6.0 Gb/s Connectors
Support NCQ, AHCI and Hot Plug

NETWORKING

1 × Realtek RTL8105E 100M LAN Controller

REAR PORTS

• 2 × USB 2.0 Mouse / Keyboard Ports
• 1 × HDMI Port
• 1 × VGA Port
• 2 × USB 2.0 Ports (ESD Protection)
• 2 × USB 3.1 Gen1 Ports (ESD Protection)
• 1 × RJ-45 LAN Port with LED (ACT/LINK & SPEED)
• HD Audio Jacks: Line-in / Front Speaker / Microphone

AUDIO

Realtek ALC662 Codec

FAN HEADERS

1 × 4-pin CPU FAN
1 × 3-pin SYSTEM FAN

EXCLUSIVE FEATURES

• 1 × Chassis Intrusion & Speaker Header
• 1 × CPU Fan Connector (4-pin)
• 1 × Chassis / Water Pump Fan Connector (4-pin, Smart Fan Control)
• 1 × 24-pin ATX Power Connector
• 1 × 8-pin 12V Power Connector
• 1 × Front Panel Audio Connector
• 2 × USB 2.0 Headers (support 4 USB 2.0 ports, ESD Protection)
• 1 × USB 3.1 Gen1 Header (support 2 ports, ESD Protection)

OPERATING SYSTEM

Linux, Ubuntu, Windows 10 / 11

FORM FACTOR

ATX Form Factor: 170 mm × 190 mm
