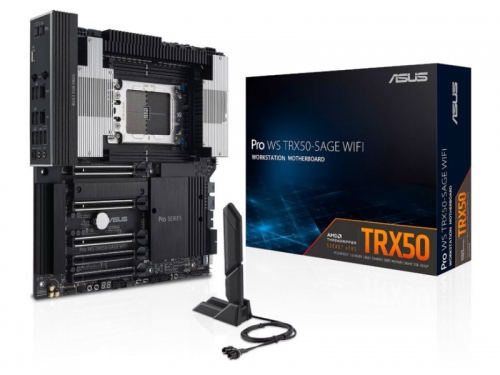

ASUS PRO WS TRX50-SAGE WIFI (STR5, AMD TRX50, DDR5, USB3.2 GEN2 TYPE-C, SATA3)

Kategori

Spesifikasi

Model

Pro WS TRX50-SAGE WIFI

CPU

AMD Socket sTR5 untuk Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series dan Ryzen™ Threadripper™ 9000 & 7000 Series

Chipset

AMD TRX50

Memory

4× DIMM DDR5, ECC Registered, Quad-channel

Ekspansi Slot

2× PCIe 5.0 x16, 1× PCIe 5.0 x16 (x8), 1× PCIe 4.0 x16, 1× PCIe 4.0 x16 (x4)

Storage

3× M.2 (2× PCIe 5.0 x4 + 1× PCIe 4.0 x4), 4× SATA 6Gb/s, 1× SlimSAS PCIe 4.0 x4

RAID

AMD RAIDXpert2: PCIe & SATA RAID 0/1/5/10

Ethernet

1× Marvell AQtion 10GbE, 1× Intel I226-LM 2.5GbE

Wireless

Wi-Fi 7 (802.11be), 2×2 band 2.4/5/6GHz, Bluetooth 5.4

USB (Belakang)

1× USB 20Gbps Type-C, 6× USB 10Gbps Type-A, 2× USB 2.0 Type-A

USB (Depan)

1× USB 20Gbps Type-C (27W PD/QC4+), 1× USB 5Gbps header (2 port), 2× USB 2.0 header (4 port)

Audio

Realtek ALC1220P, S/PDIF optical, 5.1CH, 32-bit/192kHz, shielded

Back Panel I/O

USB lengkap, Wi-Fi module, 10GbE, 2.5GbE, 2× audio jack, S/PDIF, BIOS FlashBack, Clear CMOS

Header Internal

CPU fan, CPU OPT, W_PUMP+, 4× chassis fan, 2× VRM fan, dual 24-pin, dual 8-pin CPU, PCIe power headers, BMC header, USB4 header, FlexKey, LN2, Slow-Mode, TPM, sensor termal, dll.

Fitur Premium

Q-Code, Q-DIMM, Q-Slot, M.2 Q-Latch, VRM aktif fan, SafeSlot, SafeDIMM, ProCool II, onboard START & ReTry button

Software

Armoury Crate, Fan Xpert 4, ASUS Control Center Express, Norton, Adobe CC trial

BIOS

256 Mb UEFI AMI BIOS, CrashFree BIOS 3, EZ Flash

Manageability

WOL, PXE (UEFI)

Aksesoris

2× SATA cable, CPU 8-pin to PCIe adapter, Thermistor pack, WiFi Q-Antenna, M.2 Q-Latch, Q-Connector

OS Support

Windows 11

Form Factor

CEB – 12” × 11” (30.5 × 28.3 cm)
