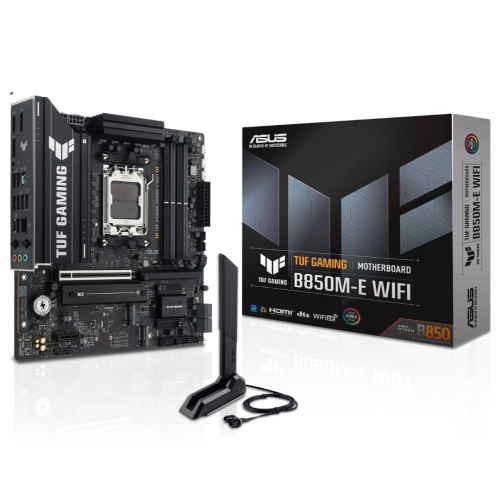

ASUS TUF GAMING B850M-E WIFI (AM5, AMD B850, DDR5, USB3.2 TYPE-C, SATA3)

Kategori

Spesifikasi

Model

TUF GAMING B850M-E WIFI

Form Factor

micro-ATX (24.4 x 24.4 cm)

Chipset

AMD B850

CPU Support

AMD AM5: Ryzen 9000 / 8000 / 7000 Series

Memory

4× DDR5 DIMM, Max 256GB, Dual Channel, Up to 8000+ MT/s (OC), EXPO, AEMP

Graphics Output

2× DisplayPort (8K@60Hz), 1× HDMI (4K@60Hz)

Expansion Slots

- PCIe 5.0 x16 (Ryzen 9000/7000)
- PCIe 4.0 x16 (Ryzen 8000)
- PCIe 4.0 x1

Storage

M.2 (3 slot):
• M.2_1: PCIe 5.0 x4 (Ryzen 9000/7000) / PCIe 4.0 x4 (Ryzen 8000)
• M.2_2: PCIe 4.0 x4 / x2
• M.2_3: PCIe 4.0 x4 (2242/60/80)
4× SATA 6Gb/s
RAID: 0/1/5/10 (Ryzen 9000), 0/1 (Ryzen 8000), 0/1/10 (Ryzen 7000)

LAN

Realtek 2.5Gb Ethernet + TUF LANGuard

Wireless

Wi-Fi 6E (2×2), 2.4/5/6GHz, Bluetooth 5.3

Rear USB Ports (8)

- 2× USB 10Gbps (1×A, 1×C)
- 2× USB 5Gbps (Type-A)
- 4× USB 2.0

Front USB

- 1× USB-C 5Gbps
- 1× header USB 5Gbps (2 port)
- 2× header USB 2.0 (4 port)

Audio

Realtek 7.1 HD Audio Codec, 24-bit/192kHz, Audio Shielding, Premium Caps

Back I/O Ports

2× USB 10Gbps, 2× USB 5Gbps, 4× USB 2.0, 2× DP, 1× HDMI, 1× 2.5G LAN, Wi-Fi Module, 3× Audio Jacks, BIOS FlashBack button, PS/2 combo

Internal Headers

CPU Fan, CPU OPT, AIO Pump, 2× Chassis Fan, 24-pin ATX, 8-pin + 4-pin CPU, 3× M.2, 4× SATA, RGB Gen2 (3), Clear CMOS, COM, F-Audio, Front Panel, Chassis Intrusion

Special Features

M.2 Q-Latch, PCIe Q-Release, Q-Antenna, Q-LED, SafeSlot, SafeDIMM, Armoury Crate, Aura Sync

Cooling Features

VRM Heatsink, M.2 Heatsink

Software

Armoury Crate, Aura Sync, Fan Xpert 2+, TurboV Core, DTS, Norton 360 trial, WinRAR trial

BIOS

256 Mb UEFI AMI BIOS, EZ Flash 3, CrashFree BIOS 3

OS Support

Windows 11 (22H2+), Windows 10 64-bit (21H2+)

Accessories

WiFi Q-Antenna, 2× SATA cable, M.2 Screws, M.2 Rubber, Sticker, Quick Guide
