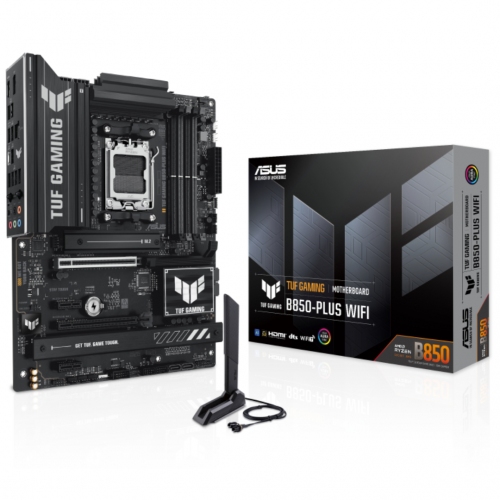

ASUS TUF GAMING B850-PLUS WIFI (AM5, AMD B850, DDR5, USB3.2 TYPE-C, SATA3)

Kategori

Spesifikasi

Model

TUF GAMING B850-PLUS WIFI

CPU

AMD Socket AM5, mendukung Ryzen™ 9000 / 8000 / 7000 Series

Chipset

AMD B850

Memori

4× DIMM DDR5, hingga 256GB
Mendukung hingga 8000+ MT/s (OC)
EXPO™, AEMP, Dual Channel
On-Die ECC (Non-ECC Unbuffered DDR5)

Grafis (Output)

1× DisplayPort 1.4 (maks 8K@30Hz)
1× HDMI 2.1 (4K@60Hz)

Slot Ekspansi

Untuk Ryzen 9000 & 7000:
• 1× PCIe 5.0 x16
Untuk Ryzen 8000:
• 1× PCIe 4.0 x16 (x8/x4)
Chipset B850:
• 1× PCIe 4.0 x16 (x4)*
• 2× PCIe 4.0 x1
*Berbagi jalur dengan M.2_3

Penyimpanan

Total 3× M.2 + 4× SATA 6Gb/s
• M.2_1: PCIe 5.0 x4 (Ryzen 9000/7000) / PCIe 4.0 x4 (Ryzen 8000)
• M.2_2: PCIe 4.0 x4/x2 (2242–22110)
• M.2_3: PCIe 4.0 x4 (berbagi dengan PCIEX16 G4)
• RAID: 9000 (0/1/5/10), 8000 (0/1), 7000 (0/1/10)

Jaringan Kabel

Realtek 2.5Gb Ethernet, TUF LANGuard

Wireless

Wi-Fi 7 (802.11be), 2×2, 2.4/5/6 GHz
Kecepatan hingga 2.9Gbps
Bluetooth 5.4

USB Belakang

Total 10 Port:
• 1× USB-C 20Gbps
• 3× USB-A 10Gbps
• 4× USB-A 5Gbps
• 2× USB 2.0

USB Depan

Total 7 Port:
• 1× USB-C 10Gbps
• 1× Header USB 5Gbps (2 port)
• 2× Header USB 2.0 (4 port)

Audio

Realtek ALC1220P, 7.1 Surround
120 dB SNR playback / 113 dB SNR recording
Jack-detection, De-pop, Premium capacitors

Back Panel I/O

1× USB-C 20Gbps
3× USB-A 10Gbps
4× USB-A 5Gbps
2× USB 2.0
1× DP
1× HDMI
1× 2.5Gb LAN
5× Audio Jacks
1× BIOS FlashBack

Internal Header

1× CPU Fan
1× CPU OPT Fan
1× AIO Pump
4× Chassis Fan
3× Addressable Gen2 RGB
1× Clear CMOS
1× COM
1× Front Panel Audio
1× Thunderbolt/USB4 header

Fitur Utama

Q-Release, Q-LED, Q-Latch, Q-Antenna
M.2 Heatsink, VRM Heatsink<brDIGI+ VRM, ESD Guard, SafeSlot, ProCool
Armoury Crate, Fan Xpert 4

BIOS

256 Mb UEFI AMI BIOS, EZ Flash 3, CrashFree BIOS 3

Aksesoris

2× SATA cables
ASUS WiFi Q-Antenna
Sticker TUF
2× M.2 Rubber Kits
Quick Start Guide

OS Support

Windows 11

Form Factor

ATX — 30.5 cm × 24.4 cm
