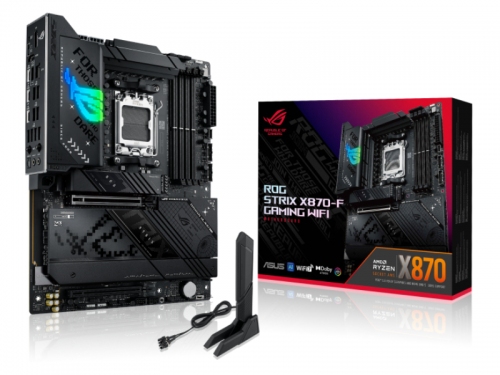

ASUS ROG STRIX X870-F GAMING WIFI (AM5, AMD X870, DDR5, USB3.2 TYPE-C, SATA3)

Kategori

Detail

Model

ROG STRIX X870-F GAMING WIFI

CPU

AMD Socket AM5
Ryzen™ 9000 / 8000 / 7000 Series

Chipset

AMD X870

Memory

4× DIMM DDR5, max 256GB
Up to 8000+ MT/s (OC)
ECC / Non-ECC, Unbuffered
Dual Channel
EXPO™ & AEMP support

Graphics Output

1× DisplayPort (8K@30Hz)
1× HDMI 2.1 (4K@60Hz)
2× USB4 Type-C (DP Alt Mode, 4K@60Hz)

Expansion Slots

With Ryzen 9000/7000: 1× PCIe 5.0 x16
With Ryzen 8000: 1× PCIe 4.0 x16 (x8/x4)
Chipset: 1× PCIe 4.0 x16 (x4)

Storage

M.2 Slots (4 total):
• M.2_1: PCIe 5.0 x4 (2242/2260/2280)
• M.2_2: PCIe 5.0 x4 (2242~22110)*
• M.2_3: PCIe 4.0 x4 (2280)**
• M.2_4: PCIe 4.0 x4 (2280)
SATA: 2× SATA 6Gb/s
RAID: PCIe/SATA RAID 0/1/5/10

Ethernet

Intel® 2.5Gb LAN + LANGuard

Wireless

Wi-Fi 7 (802.11be), 2×2
2.4/5/6GHz, 320MHz, up to 6.5Gbps

Bluetooth

Bluetooth® 5.4

Rear USB Ports (12 total)

2× USB4 40Gbps Type-C
6× USB 10Gbps (5× Type-A, 1× Type-C PD 30W)
4× USB 5Gbps Type-A

Front USB Ports (9 total)

1× USB 20Gbps Type-C header
4× USB 5Gbps (via 2 headers)
4× USB 2.0 (via 2 headers)

Audio

ROG SupremeFX ALC4080
7.1 Surround
120 dB SNR playback
110 dB SNR recording
Rear Optical S/PDIF

Back Panel I/O

2× USB4 40Gbps Type-C
6× USB 10Gbps
4× USB 5Gbps
1× DisplayPort
1× HDMI
1× Intel 2.5Gb LAN
Wi-Fi module
2× Audio jacks
1× Optical S/PDIF
BIOS FlashBack™ button
Clear CMOS button

Fan & Cooling Headers

CPU Fan ×1
CPU OPT ×1
AIO Pump ×1
Chassis Fan ×5

Power Connectors

1× 24-pin ATX
2× 8-pin CPU 12V

Internal Headers

4× M.2 slots
2× SATA 6Gb/s
USB 20Gbps
USB 5Gbps (×4)
USB 2.0 (×4)
AR Gen2 headers (×3)
Front panel audio
Start button
Thermal sensor

Special Features

Extreme Engine Digi+
Q-Design (M.2 Q-Latch, Q-Release, Q-Antenna, Q-Slot, Q-LED, dll.)
ASUS Thermal Solution (M.2 heatsinks & backplate)
EZ DIY (BIOS FlashBack, Clear CMOS, SafeSlot, SafeDIMM)
Aura Sync

Software

Armoury Crate
Aura Creator
Fan Xpert 4 (AI Cooling II)
GameFirst
AIDA64 (60-day trial)
HWiNFO
Adobe CC Trial
Norton 360 for Gamers (60-day)

BIOS

256 Mb UEFI AMI BIOS
AI Overclocking, EZ Flash 3, CrashFree BIOS 3

Accessories

2× SATA cables
M.2 thermal pad
Q-Antenna
M.2 Q-Latch & Q-Slide kits
ROG keychain
ROG stickers
4× M.2 rubber kits
Quick start guide

OS Support

Windows 11

Form Factor

ATX — 30.5 × 24.4 cm
