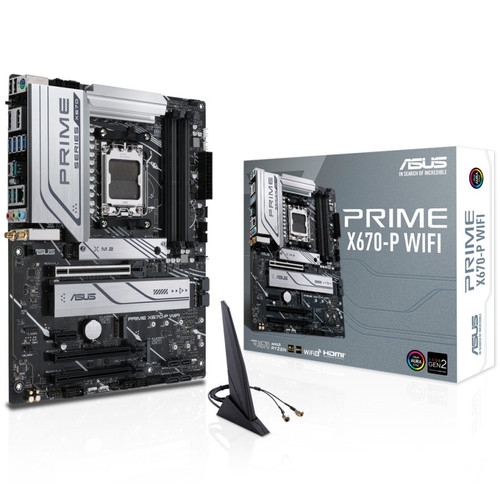

ASUS PRIME X670-P WIFI-CSM (AM5, AMD X670, DDR5, USB3.2 TYPE-C, SATA3)

Kategori

Spesifikasi

Model

PRIME X670-P WIFI-CSM

CPU

AMD Socket AM5 untuk Ryzen 9000 / 8000 / 7000 Series Desktop Processors

Chipset

AMD X670 Chipset

Memory

4× DIMM, Max 256GB DDR5 7600+(OC) hingga 4800

ECC / Non-ECC, Un-buffered

Dual Channel, EXPO™, OptiMem II

Kecepatan dan kompatibilitas tergantung CPU & konfigurasi DRAM

Graphics

1× DisplayPort (8K@60Hz, DP 1.4)

1× HDMI (4K@60Hz, HDMI 2.1)

Expansion Slots

Untuk Ryzen 9000 & 7000: 1× PCIe 4.0 x16 (x16)

Untuk Ryzen 8000: 1× PCIe 4.0 x16 (x8/x4)*

Dari Chipset: 2× PCIe 4.0 x16 (x4 mode), 1× PCIe 3.0 x1**

Spesifikasi bervariasi per CPU

Slot PCIe 3.0 x1 berbagi dengan SATA6G_3/4

Storage

Total 3× M.2 + 6× SATA 6Gb/s

Ryzen 9000/7000: M.2_1 PCIe 5.0 x4, M.2_2 PCIe 4.0 x4

Ryzen 8000: M.2_1 PCIe 4.0 x4, M.2_2 PCIe 4.0 x4/x2*

Chipset: M.2_3 PCIe 4.0 x4, 6× SATA

Mendukung NVMe & SATA RAID 0/1/10

Spesifikasi bervariasi per CPU

Ethernet

Realtek 2.5Gb Ethernet

Wireless & BT

Wi-Fi 6 (2×2, 2.4/5GHz), Bluetooth 5.2

USB (Rear I/O)

Total 10 USB:

1× USB 3.2 Gen 2x2 Type-C

3× USB 3.2 Gen 2 Type-A

4× USB 3.2 Gen 1 Type-A

2× USB 2.0 Type-A

USB (Front Panel)

1× USB 3.2 Gen 1 Type-C

2× USB 3.2 Gen 1 headers (4 ports)

2× USB 2.0 headers (4 ports)

Type-C output max 5V/3A

Audio

Realtek 7.1 HD Audio Codec

Jack-detection, Multi-streaming, Jack-retasking

Premium Caps & Audio Shielding

Back Panel I/O

1× USB 3.2 Gen 2x2 Type-C

3× USB 3.2 Gen 2 Type-A

4× USB 3.2 Gen 1 Type-A

2× USB 2.0

1× DisplayPort, 1× HDMI

1× Wi-Fi Module

1× Realtek 2.5Gb LAN

3× Audio jacks

1× BIOS FlashBack button

1× PS/2 Combo

Internal I/O

CPU Fan, CPU OPT, AIO Pump, 3× Chassis Fan

24-pin + 8-pin + 4-pin power

3× M.2, 6× SATA

USB: Type-C, 2× USB 3.2 Gen1 headers, 2× USB 2.0 headers

3× ARGB Gen2, 2× RGB headers

Clear CMOS, COM, AAFP, S/PDIF, TPM, System Panel

Thunderbolt (USB4) header

Special Features

ASUS 5X Protection III, DIGI+ VRM, ESD Guards

M.2 Q-Latch, Q-DIMM, Q-LED Core, Q-Slot

VRM Heatsink, M.2 Heatsink

BIOS FlashBack

Aura Sync, ARGB Gen 2

Software

Armoury Crate (Aura, Fan Xpert, AI Cooling II)

AI Suite 3 (TurboV EVO, DIGI+ VRM)

ASUS CPU-Z, MyASUS, ACC Express

Norton Trial, WinRAR

BIOS: CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

2× SATA cables, Wi-Fi Antenna

Rubber & screws for M.2

ACC Key Card, User Guide

OS Support

Windows 11 / Windows 10 64-bit

Form Factor

ATX (30.5 cm × 24.4 cm)
