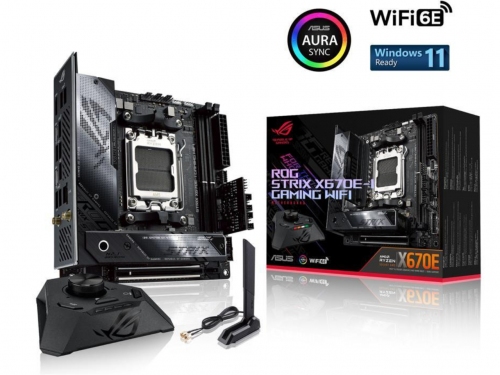

ASUS ROG STRIX X670E-I GAMING WIFI (AM5, AMD X670, DDR5, USB3.2 TYPE-C, SATA3)
Rp. 0
- SKU: ASUMBAAM5009X
- CATEGORY: Motherboard amd am5
- Merk: ASUS
Tersedia Di marketplace
Asus ROG STRIX X670E-I Gaming WIFI (AM5, AMD X670, DDR5, USB3.2 Type-C, SATA3)
| Model | |
| Brand | ASUS |
| Series | ROG |
| Model | STRIX X670E-I GAMING WIFI |
| Supported CPU | |
| CPU Socket Type | AM5 |
| CPU Type | Supports AMD Ryzen 7000 Series Desktop Processors* |
| * Refer to www.asus.com for CPU support list. | |
| Chipsets | |
| Chipset | AMD X670E |
| Memory | |
| Number of Memory Slots | 2x288pin (DDR5) |
| Memory Standard | Supports DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 |
| * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function | |
| Expansion Slots | |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
| Storage Devices | |
| SATA 6Gb/s | 2 x SATA 6Gb/s |
| M.2 | AMD Ryzen 7000 Series Desktop Processors |
| M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) | |
| AMD X670 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1 and SATA RAID 0/1. | |
| Onboard Audio | |
| Audio Chipset | Realtek ALC4050 |
| Audio Channels | ROG High Definition Audio CODEC ALC4050 |
| - Supports: Jack-detection | |
| - High quality 118 dB SNR stereo playback output and 94 dB SNR recording input | |
| - Supports up to 32-Bit/384 kHz playback | |
| Audio Features | |
| - ROG Hyper-Grounding Technology | |
| - ESS SABRE9260Q DAC | |
| - Silver-plated audio jacks | |
| - Optical S/PDIF out port & USB Type-C port with indepent power solution | |
| - Dedicated audio PCB layers | |
| *All audio functions on ROG STRIX X670E-I GAMING WIFI are supported through ROG STRIX HIVE | |
| Onboard LAN | |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 6E |
| 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5/6GHz frequency band* | |
| * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. | |
| Bluetooth | Bluetooth v5.2 |
| Rear Panel Ports | |
| Back I/O Ports | 2 x USB4 port(s) with Intel JHL8540 USB4 controller (2 x USB Type-C) |
| 5 x USB 3.2 Gen 2 port(s) (5 x Type-A) (1 port supports ROG STRIX HIVE) | |
| 3 x USB 2.0 port(s) (3 x Type-A) | |
| 1 x HDMI port | |
| 1 x Wi-Fi Module | |
| 1 x Intel I225-V 2.5Gb Ethernet port | |
| Internal I/O Connectors | |
| Onboard USB | 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C ) |
| Other Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header(s) | |
| 1 x 4-pin AIO Pump header(s) | |
| 1 x 4-pin Chassis Fan header(s) | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| Miscellaneous | |
| 1 x Addressable Gen 2 header(s) | |
| 1 x AURA RGB header(s) | |
| 1 x RTC Battery header | |
| 1 x Thermal Sensor header | |
| 1 x 2 pin Power_BTN header | |
| 2 x USB Type-C connectors to Install ROG FPS-II card | |
| ROG FPS-II card | |
| 2 x SATA 6Gb/s ports | |
| 1 x CPU Over Voltage jumper | |
| 1 x Clear CMOS header | |
| 1 x Front Panel header | |
| 1 x Alteration mode switch | |
| 2 x USB 2.0 header(s) support(s) additional 3 USB 2.0 ports | |
| Physical Spec | |
| Form Factor | Mini ITX |
| LED Lighting | RGB |
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin Main Power connector |
| 1 x 8-pin +12V Power connector | |
| Windows 11 Compatibility | |
| Windows 11 | Supported |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector |
| 2 x 8-pin +12V Power connector | |
| Windows 11 Compatibility | |
| Windows 11 | Supported |
| Windows 11 Compatibility | |
| Windows 11 | Supported |
| Physical Spec | |
| Form Factor | Micro ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector |
| 2 x 8-pin +12V Power connector | |
| 1 x 6-pin PCIe Graphics Card connector | |
| Windows 11 Compatibility | |
| Windows 11 | Supported |
| 1 x Safe Boot button | |
| 1 x Slow Mode switch | |
| 1 x Start button | |
| 1 x V_Latch switch | |
| 1 x 10-1 pin System Panel header | |
| 1 x Thermal Sensor header | |
| Physical Spec | |
| Form Factor | Enhanced Extended ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 10.9" |
| Power Pin | 1 x 24-pin Main Power connector |
| 2 x 8-pin +12V Power connector | |
| 1 x 6-pin PCIe Graphics Card connector | |
| Windows 11 Compatibility | |
| Windows 11 | Supported |
