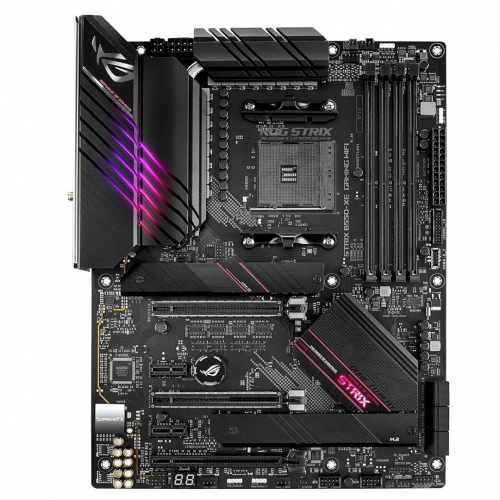

ASUS ROG STRIX B550-XE GAMING (WI-FI) (AM4, AMD PROMONTORY B550, DDR4, USB3.2, SATA3)

Kategori

Spesifikasi

Model

ROG STRIX B550-XE GAMING WIFI

Form Factor

ATX (30.5 cm x 24.4 cm)

Chipset

AMD B550

Socket / CPU Support

AMD AM4 Socket
Mendukung AMD Ryzen™ 5000 / 4000 G-Series / 3000 Series Desktop Processors

Memory

4 x DIMM DDR4, hingga 128GB
Kecepatan hingga 5100+ MHz (OC, tergantung CPU)
Dual Channel, ECC (opsional)
ASUS OptiMem II

Graphics Output

1 x HDMI 2.1 (4K@60Hz)
1 x DisplayPort 1.2

Multi-GPU Support

NVIDIA® 2-Way SLI®
AMD® 3-Way CrossFireX™

Expansion Slots

- 2 x PCIe 4.0 x16 (x16 / dual x8, CPU)
- 2 x PCIe 3.0 x16 (x16 / dual x8, Chipset)
- 1 x PCIe 3.0 x16 (x4 mode)
- 2 x PCIe 3.0 x1

Storage

- 2 x M.2 (1 x PCIe 4.0 x4 + 1 x PCIe 3.0 x4/SATA)
- 6 x SATA 6Gb/s
Mendukung RAID 0, 1, 10
*M.2_2 menonaktifkan SATA6G_5/6

LAN

Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Intel® Wi-Fi 6 AX200 (2x2 MU-MIMO, 2.4/5GHz, HT160)
Bluetooth 5.1

Audio

ROG SupremeFX S1220A 7.1-Channel HD Audio CODEC
Dual OP Amplifiers
Audio USB Type-C®
120 dB SNR Playback / 113 dB SNR Recording
Premium Japanese Capacitors, Optical S/PDIF Out

USB (Rear I/O)

8 Port Total:
• 3 x USB 3.2 Gen 2 (2x Type-A + 1x Type-C)
• 5 x USB 2.0 (1 untuk audio Type-C®)

USB (Front Panel)

7 Port Total:
• 1 x USB 3.2 Gen 2 (Type-C Header)
• 2 x USB 3.2 Gen 1 Header (2 Port)
• 4 x USB 2.0 Header (4 Port)

Internal Connectors

- 1 x CPU Fan, 1 x CPU OPT Fan
- 3 x Chassis Fan, 1 x AIO_PUMP
- 2 x Aura RGB Header, 2 x Addressable Gen 2 Header
- 1 x Thunderbolt Header
- 6 x SATA 6Gb/s
- 1 x 24-pin EATX Power
- 1 x 8-pin + 1 x 4-pin ATX 12V Power
- 1 x Thermal Sensor, 1 x Clear CMOS

Back Panel I/O

- 1 x HDMI
- 1 x DisplayPort
- 3 x USB 3.2 Gen 2 (2x Type-A + 1x Type-C)
- 5 x USB 2.0
- 1 x Intel 2.5Gb LAN
- 5 x Audio Jacks
- 1 x BIOS FlashBack™ Button
- Modul Wi-Fi 6 + Bluetooth 5.1

Special Features

- ASUS Aura Sync RGB (Standard & Addressable Gen 2)
- ASUS Q-Design (Q-DIMM, Q-LED, Q-Slot, Q-Code)
- BIOS FlashBack™, Clear CMOS
- Pre-mounted I/O Shield
- SafeSlot PCIe Reinforcement
- Aluminum M.2 Heatsink
- FlexKey Reset/Custom Button

Software

- Armoury Crate (Aura Sync, AI Noise Cancelling Mic)
- AI Suite 3 (5-Way Optimization, Fan Xpert 4, Turbo App)
- ROG CPU-Z, RAMCache III, GameFirst VI
- Sonic Studio III + Virtual Mixer, Sonic Radar III, DTS® Sound Unbound

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

- 1 x Hyper M.2 x16 Gen 4 Card
- 5 x M.2 Screw Packages
- 3 x M.2 Rubber Kits
- 4 x SATA 6Gb/s Cables
- 1 x Wi-Fi Antenna
- 1 x Audio USB Type-C® Cable
- 1 x RGB Extension Cable (80cm)
- 1 x Addressable LED Extension
- ROG Keychain, Stickers, Cable Ties, Thank You Card, Manual, DVD Support

Operating System

Windows® 10 64-bit

Catatan

*M.2_2 berbagi bandwidth dengan SATA6G_5/6
*32-Bit/192kHz tidak didukung untuk 7.1 Channel Audio karena batasan HDA bandwidth
