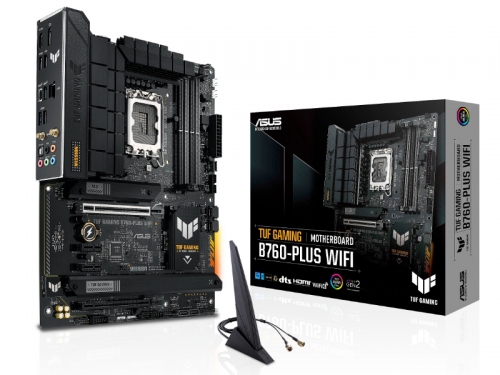

ASUS TUF GAMING B760-PLUS WIFI (LGA1700, B760, DDR5, USB3.2 TYPE-C, SATA3)

Kategori

Spesifikasi

Model

TUF GAMING B760-PLUS WIFI

CPU

Intel LGA1700 – Mendukung Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron
Mendukung Intel Turbo Boost 2.0 & Turbo Boost Max 3.0*

Chipset

Intel B760

Memori

4× DIMM DDR5, Max 192GB
DDR5 7200(OC) hingga 4800
Dual Channel, XMP Support, OptiMem II
DDR5 Non-ECC Unbuffered (with On-Die ECC)

Grafis

1× DisplayPort (4K@60Hz, DP 1.4)
1× HDMI (4K@60Hz, HDMI 2.1)

Slot Ekspansi

Dari CPU: 1× PCIe 5.0 x16
Dari Chipset: 1× PCIe 3.0 x16 (x4 mode, shared lanes)
2× PCIe 3.0 x1 (berbagi bandwidth dengan PCIe x16 Gen3)

Storage

3× M.2 (NVMe PCIe 4.0):
- M.2_1: PCIe 4.0 x4 (CPU)
- M.2_2: PCIe 4.0 x4 (PCH, 22110 support)
- M.2_3: PCIe 4.0 x4
4× SATA 6Gb/s
Intel RST, RAID 0/1/5/10

LAN

Realtek 2.5Gb Ethernet + TUF LANGuard

Wireless

Wi-Fi 6 (802.11ax) 2×2
Dual-band 2.4/5GHz
Bluetooth 5.2

USB – Rear I/O

1× USB 3.2 Gen2x2 Type-C
1× USB 3.2 Gen2 Type-A
3× USB 3.2 Gen1 Type-A
1× USB 2.0 Type-A

USB – Front

1× USB 3.2 Gen2 Type-C (header)
1× USB 3.2 Gen1 header (2 ports)
2× USB 2.0 headers (4 ports)

Audio

Realtek 7.1 HD Audio CODEC
24-bit/192kHz
Optical S/PDIF out
Premium caps, audio shielding

Back Panel I/O

1× USB-C Gen2x2
1× USB-A Gen2
3× USB-A Gen1
1× USB 2.0
DP, HDMI
Wi-Fi module
Realtek 2.5Gb LAN
5× audio jacks + Optical S/PDIF

Internal I/O

1× CPU Fan, 1× CPU OPT, 1× AIO Pump
4× Chassis Fan headers
24-pin ATX, 8-pin EPS, 4-pin EPS
RGB: 1× Aura RGB, 3× ARGB Gen2
Thunderbolt (USB4) header
Clear CMOS, COM, AAFP

TUF Protection

DIGI+ VRM, ESD Guards, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless Steel I/O

Q-Design

M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot

Thermal

M.2 heatsink, VRM heatsink

EZ DIY

Pre-mounted I/O shield, ProCool, SafeDIMM, CPU socket lever protector

Software

Armoury Crate, Fan Xpert 4, AI Noise Cancelation, AI Suite 3, DTS Audio, MyASUS, WinRAR, Norton 360

BIOS

128Mb AMI UEFI BIOS, CrashFree BIOS 3, EZ Flash 3

OS Support

Windows 11 & Windows 10 64-bit

Aksesoris

2× SATA cables, WiFi antenna, TUF sticker, M.2 rubber kits, M.2 screw, User guide, TUF card

Form Factor

ATX – 30.5 × 24.4 cm
