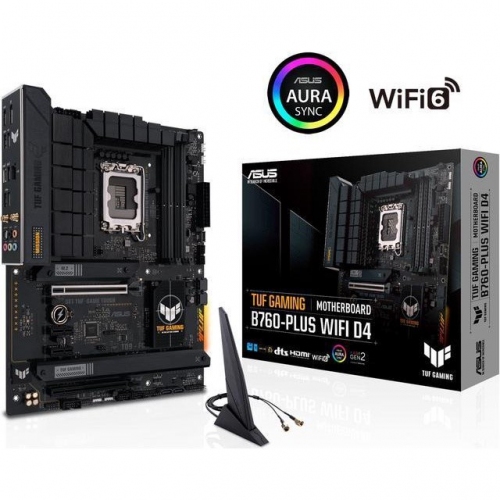

ASUS TUF GAMING B760-PLUS WIFI D4 (LGA1700, B760, DDR4, USB3.2 TYPE-C, SATA3)
Rp. 3.185.000
- SKU: ASUMB1700042X
- CATEGORY: Motherboard intel lga 1700
- Merk: ASUS
Tersedia Di marketplace
Asus TUF Gaming B760-PLUS WIFI D4 (LGA1700, B760, DDR4, USB3.2 Type-C, SATA3)
| Model | |
| Model | TUF GAMING B760-PLUS WIFI D4 |
| Part Number | 90MB1DF0-M0AAY0 |
| Memory | |
| Memory Standard | DDR4 5333(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 |
| Expansion Slots | |
| PCI Express 5.0 x16 | Intel 13th & 12th Gen Processors |
| 1 x PCIe 5.0 x16 slot | |
| PCI Express 3.0 x16 | Intel B760 Chipset |
| 1 x PCIe 3.0 x16 slot (supports x4 mode) * | |
| PCI Express x1 | 2 x PCIe 3.0 x1 slots* |
| * PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2. When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode. | |
| - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. | |
| Storage Devices | |
| M.2 | Intel 13th & 12th Gen Processors |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| Intel B760 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| Onboard Audio | |
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| - Audio Shielding | |
| - Rear optical S/PDIF out port | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| - Audio cover | |
| Onboard LAN | |
| Max LAN Speed | 1 x Realtek 2.5Gb Ethernet |
| TUF LANGuard | |
| Bluetooth | Bluetooth v5.2 |
| *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. | |
| Rear Panel Ports | |
| Back I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) |
| 1 x USB 3.2 Gen 2 port (1 x Type-A) | |
| 3 x USB 3.2 Gen 1 ports (3 x Type-A) | |
| 1 x USB 2.0 port (1 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x Wi-Fi Module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| Internal I/O Connectors | |
| Onboard USB | 1 x USB 3.2 Gen 2 connector (supports USB Type-C) |
| 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Other Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 4 x 4-pin Chassis Fan headers | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Aura RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thunderbolt (USB4) header | |
| Physical Spec | |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector |
