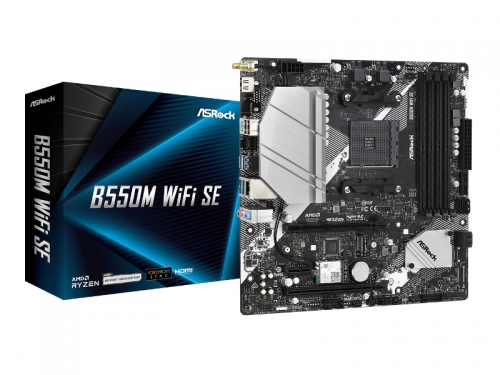

ASROCK B550M WIFI SE (AM4, AMD PRO565, DDR4, USB3.2, SATA3)

Form Factor

Micro ATX (24.4 cm x 24.4 cm)

Chipset

AMD PRO565

Socket CPU

AMD AM4

CPU Support

Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000, 5000 G-Series Desktop

Power Design

8 Power Phase Design, Digi Power

BIOS

256Mb AMI UEFI Legal BIOS with GUI

Special Features

ASRock Super Alloy, Full Spike Protection, Live Update & App Shop, POST Status Checker (PSC), Polychrome Sync

Slot DIMM

4 x DDR4 DIMM

Kapasitas Maksimum

128GB

Dukungan ECC

Ya (dengan CPU PRO tertentu)

Dukungan XMP

Ya

Kecepatan Maksimal (OC)

Hingga DDR4-4733+ (tergantung CPU)

Gold Contact

15μ Gold Contact

GPU Terintegrasi

Radeon™ Vega (di APU Ryzen)

DirectX / Shader

DX12, Pixel Shader 5.0

Resolusi Maks. HDMI

4K @ 60Hz

Port Output

1 x HDMI 2.1

HDR / HDCP

HDR, HDCP 2.3 (Picasso: HDCP 2.2)

Shared Memory

Default 2GB, Maks. 16GB (dengan 32GB RAM)

Audio Codec

Realtek ALC1220, 7.1 CH HD Audio

LAN

Realtek RTL8111H Gigabit LAN

Wireless LAN

Intel® 802.11ac WiFi, Dual Band (2.4 / 5GHz)

Bluetooth

4.2

PCIe x16

2 Slot (PCIE1 Gen4/3, PCIE3 Gen3 x4)

PCIe x1

1 Slot

M.2 (WiFi)

1 x M.2 Key E untuk WiFi

CrossFire Support

Ya, AMD Quad CrossFireX™

SATA3 6Gb/s

4 Port

M.2 NVMe

1 x Hyper M.2 (Gen4x4 dengan Vermeer/Matisse)

Dukungan RAID

RAID 0, 1, 10

RGB Header

2 x RGB, 2 x ARGB

USB Header

2 x USB 2.0, 2 x USB 3.2 Gen1

Fan Header

1 x CPU, 3 x Chassis/Water Pump

Lainnya

1 x COM, 1 x SPI TPM, 1 x 24-pin ATX, 1 x 8-pin CPU

HDMI

1 x HDMI 2.1

USB 3.2 Gen1

4 x (ASMedia ASM1074)

USB 2.0

2 x

PS/2

1 x Combo

LAN

1 x RJ-45

Audio

3 x Jack Audio

WiFi Antenna

2 x Port Antena

Fan Monitoring

CPU & Chassis Fan

Voltage Monitoring

+12V, +5V, +3.3V, CPU Vcore, dll

OS Support

Windows 10/11 64-bit

Sertifikasi

FCC, CE, ErP/EuP Ready

Aksesori dalam box

I/O Shield, Kabel SATA, Antena WiFi, Sekrup M.2, Manual
