ASROCK X570 PHANTOM GAMING VELOCITA (AM4, AMD PREMIUM X570, DDR4, USB3.2, SATA3)

( 0 Reviews )

Rp. 4.295.000

SKU: ASRMBAAM4031X
CATEGORY: Motherboard amd am4
Merk: ASROCK

Pesan Email

Tersedia Di marketplace

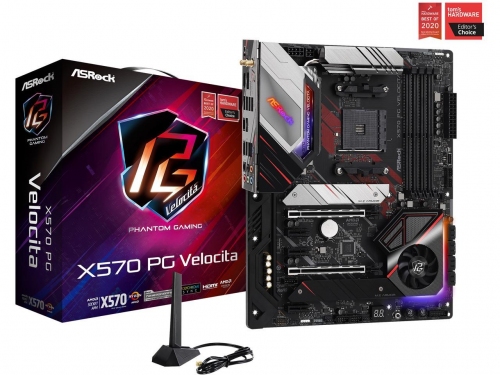

ASRock X570 Phantom Gaming Velocita

Model

Brand	ASRock
Model	X570 PG VELOCITA

Supported CPU

CPU Socket Type	AM4
CPU Type	Supports AMD Ryzen 2000 Series / 3000 Series / 4000 G-Series / 5000 Series Processors

Chipsets

Chipset	AMD X570

Memory

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5000(OC)+ / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
ECC Supported	Yes
Buffer Supported	Un-buffered

Expansion Slots

PCI Express 4.0 x16	2 x PCI Express 4.0 x16* * Actual support may vary by CPU. * Supports NVMe SSD as boot disks.
PCI Express x1	3 x PCI Express 4.0 x1
Other Slots	1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O) 15µ Gold Contact in VGA PCIe Slot (PCIE1)

Storage Devices

SATA 6Gb/s	8 x SATA 6Gb/s
M.2	1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64Gb/s) (with Vermeer, Matisse) or Gen3x4 (32Gb/s) (with Renoir, Pinnacle Ridge and Picasso)* 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen4x4 (64Gb/s)* * If Thunderbolt support is enabled, SATA type M.2 will be disabled. * Supports NVMe SSD as boot disks. * Supports ASRock U.2 Kit.
SATA RAID	0/1/10

Onboard Video

Onboard Video Chipset	Supported only by CPU with integrated graphic

Onboard Audio

Audio Chipset	Realtek ALC1220
Audio Channels	7.1 Channels

Onboard LAN

LAN Chipset	Killer E3100G
Max LAN Speed	10/100/1000/2500Mbps
Wireless LAN	Killer AX1650x 802.11ax WiFi Module IEEE802.11a/b/g/n/ax
Bluetooth	Bluetooth 5.1

Rear Panel Ports

Back I/O Ports	2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection)* 1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)* 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)* 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) 1 x BIOS Flashback Button with LED HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) * Ultra USB Power is supported on USB3_5 port. * ACPI wake-up function is not supported on USB3_5 port.

Back I/O Ports

2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection)*
1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)*
6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x BIOS Flashback Button with LED
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

* Ultra USB Power is supported on USB3_5 port.
* ACPI wake-up function is not supported on USB3_5 port.

Internal I/O Connectors

Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
Other Connectors	1 x Power LED and Speaker Header 2 x RGB LED Headers* 2 x Addressable LED Headers 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector (15µ Gold Audio Connector) 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only) 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED 1 x Clear CMOS Button * Support in total up to 12V/3A, 36W LED Strip. Support in total up to 5V/3A, 15W LED Strip. * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.

Onboard USB

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)

Other Connectors

1 x Power LED and Speaker Header
2 x RGB LED Headers*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only)
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
1 x Clear CMOS Button

* Support in total up to 12V/3A, 36W LED Strip.
** Support in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.

Physical Spec

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX Power Connector (Hi-Density Power Connector) 1 x 8-pin 12V Power Connector (Hi-Density Power Connector) 1 x 4-pin 12V Power Connector (Hi-Density Power Connector)

Windows 11 Compatibility

Windows 11	Supported
