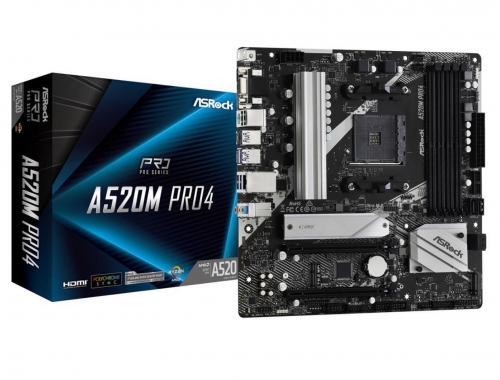

ASROCK A520M-PRO4 (AM4, A520, DDR4, USB 3.2, SATA3)

( 0 Reviews )

Rp. 1.410.000

SKU: ASRMBAAM4029X
CATEGORY: Motherboard amd am4
Merk: ASROCK

Pesan Email

Tersedia Di marketplace

ASRock A520M-PRO4 (AM4, A520, DDR4, USB 3.2, SATA3)

Model

Brand	ASRock
Model	A520M PRO4

Supported CPU

CPU Socket Type	AM4
CPU Type	Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors (3000 and 4000 Series Processors)* * Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.

Chipsets

Chipset	AMD A520

Memory

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC)/ 4666(OC)/ 4600(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots

PCI Express 3.0 x16	2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE3: x2 mode)* * Supports NVMe SSD as boot disks
Other Slots	1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

Storage Devices

SATA 6Gb/s	4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug* * M2_2 and SATA3_3_4 share lanes. If either one of them is in use, the other one will be disabled.
M.2	1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen3 x4 (32Gb/s) 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x2 (16Gb/s) Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
SATA RAID	0/1/10

Onboard Video

Onboard Video Chipset	Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* * Actual support may vary by CPU DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB. * The Max shared memory 16GB requires 32GB system memory installed. Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 Supports Triple Monitor Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) Supports HDR (High Dynamic Range) with HDMI 2.1 Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports Supports Microsoft PlayReady

Onboard Video Chipset

Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
* Actual support may vary by CPU
DirectX 12, Pixel Shader 5.0
Shared memory default 2GB. Max Shared memory supports up to 16GB.
* The Max shared memory 16GB requires 32GB system memory installed.
Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
Supports Triple Monitor
Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate
Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
Supports HDR (High Dynamic Range) with HDMI 2.1
Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
Supports Microsoft PlayReady

Onboard Audio

Audio Chipset	Realtek ALC1200
Audio Channels	7.1 Channels

Onboard LAN

LAN Chipset	Realtek RTL8111H
Max LAN Speed	10/100/1000Mbps

Rear Panel Ports

Back I/O Ports	Antenna Bracket 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-A Port (Supports ESD Protection) 4 x USB 3.2 Gen1 Type-A Ports (ASMedia ASM1074 hub) (Supports ESD Protection) 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone

Back I/O Ports

Antenna Bracket
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-A Port (Supports ESD Protection)
4 x USB 3.2 Gen1 Type-A Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O Connectors

Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors	1 x COM Port Header 1 x SPI TPM Header 1 x Power LED and Speaker Header 2 x RGB LED Headers * Support in total up to 12V/3A, 36W LED Strip 2 x Addressable LED Headers * Support in total up to 5V/3A, 15W LED Strip 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use. 1 x Front Panel Audio Connector

Onboard USB

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

Other Connectors

1 x COM Port Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers
* Support in total up to 12V/3A, 36W LED Strip
2 x Addressable LED Headers
* Support in total up to 5V/3A, 15W LED Strip
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.
1 x Front Panel Audio Connector

Physical Spec

Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector

Windows 11 Compatibility

Windows 11	Supported
