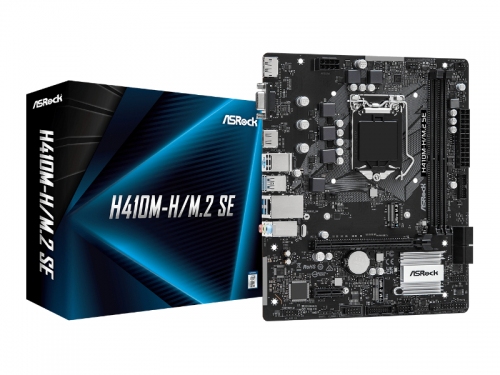

ASROCK H410M-H/M.2 SE (LGA1200, H410, DDR4, USB3.2, SATA3)

Fitur Unggulan

- ASRock Super Alloy: Premium 50A Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB
- ASRock Auto Driver Installer
- ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
- Full Spike Protection
- ASRock Live Update & APP Shop

CPU

- Mendukung 10th Gen Intel® Core™ (Socket 1200)
- 5 Power Phase Design
- Intel® Turbo Boost Max 3.0

Chipset

Intel® H370

Memori

- Dual Channel DDR4 (2x DIMM)
- Hingga 64GB
- Mendukung DDR4 2933/2800/2666/2400/2133
- ECC UDIMM (non-ECC mode)
- Intel® XMP 2.0

BIOS

- 128Mb AMI UEFI BIOS
- GUI Multilingual
- ACPI 6.0, SMBIOS 2.7
- Voltage Multi-Adjustment

Grafis

- Intel® UHD Graphics (tergantung CPU)
- Output: D-Sub, HDMI 1.4, DisplayPort 1.2
- Resolusi: HDMI 4K@30Hz, DP 4K@60Hz, D-Sub 1920x1200@60Hz
- Fitur: Deep Color, HBR, Auto Lip Sync, 4K UHD Playback

Audio

- 7.1 CH HD Audio (Realtek ALC897)
- Proteksi lonjakan listrik

LAN

- Realtek RTL8111H Gigabit LAN
- Wake-on-LAN, PXE, EEE 802.3az

Slot Ekspansi

- 1x PCIe 3.0 x16
- 1x PCIe 3.0 x1
- 1x M.2 (Key E, WiFi/BT)

Penyimpanan

- 4x SATA3 6Gb/s (RAID 0/1/5/10, AHCI, Hot Plug)
- 1x Ultra M.2 (M Key, 2260/2280, PCIe Gen3 x4 & SATA)
- Mendukung ASRock U.2 Kit

Konektor Internal

- TPM 2.0
- 1x COM Header
- 1x Chassis Intrusion
- 1x CPU Fan (4-pin, max 1A)
- 1x CPU/WP Fan (max 2A)
- 2x Chassis/WP Fan (max 2A)
- 24-pin ATX & 8-pin 12V
- Audio, USB 2.0 (2x Header), USB 3.2 Gen1 (2x Header)

Rear I/O

- 2x Antenna Mounting
- 1x PS/2 Combo
- 1x D-Sub, 1x HDMI, 1x DP
- 2x USB 2.0, 4x USB 3.2 Gen1
- 1x RJ-45 LAN
- 3x Audio Jack (Line in/Out/Mic)

Software & UEFI

- A-Tuning, Instant Flash, Auto Driver Installer
- UEFI: EZ Mode, Full HD GUI, My Favorites

Aksesori

- I/O Shield, 2x Kabel SATA, 2x Sekrup M.2, Buku Manual

Monitoring

- Tachometer, CASE OPEN, Fan Control
- Voltage Monitoring: 12V, 5V, 3.3V, CPU, DRAM, VPPM, PCH, VCCSA, VCCST

Form Factor

Micro ATX (22.6 cm x 18.8 cm)

OS Support

Windows 10 / 11 64-bit

Sertifikasi

FCC, CE, ErP/EuP Ready
