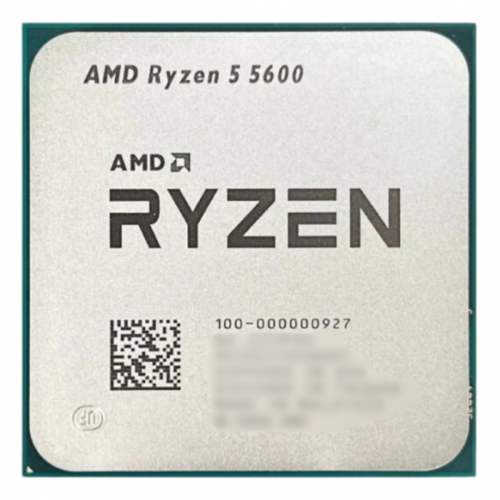

AMD RYZEN 5 5600 3.5GHZ UP TO 4.4GHZ CACHE 32MB 65W AM4 [TRAY] - 6 CORE

General Specifications

Brand

AMD

Product ID

100-000000927 (Tray)

Name

AMD Ryzen™ 5 5600

Family

Ryzen

Series

Ryzen 5000 Series

Form Factor

Desktops, Tray

Regional Availability

Global, China, NA, EMEA, APJ, LATAM

Former Codename

Vermeer

Architecture

Zen 3

# of CPU Cores

6

Multithreading (SMT)

Yes

# of Threads

12

Max. Boost Clock

Up to 4.4 GHz

Base Clock

3.5 GHz

L1 Cache

384 KB

L2 Cache

3 MB

L3 Cache

32 MB

Default TDP

65W

Processor Technology for CPU Cores

TSMC 7nm FinFET

Processor Technology for I/O Die

12nm (Globalfoundries)

CPU Compute Die (CCD) Size

74mm²

I/O Die (IOD) Size

125mm²

Package Die Count

2

Unlocked for Overclocking

Yes

CPU Socket

AM4

Supporting Chipsets

X570, X470, X370, B550, B450, B350, A520

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES, AMD-V, AVX, AVX2, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal Solution (PIB)

Not Included

Max. Operating Temperature (Tjmax)

90°C

OS Support

Windows 11 - 64-Bit Edition

Windows 10 - 64-Bit Edition

RHEL x86 64-Bit

Ubuntu x86 64-Bit

Supported Technologies

AMD StoreMI Technology, AMD Ryzen™ VR-Ready Premium

Connectivity

Native USB 3.2 Gen 2 (10Gbps)

4

Native USB 3.2 Gen 1 (5Gbps)

0

Native USB 2.0 (480Mbps)

0

Native SATA Ports

2

PCI Express® Version

PCIe® 4.0

Native PCIe® Lanes (Total/Usable)

24, 20

Additional Usable PCIe Lanes from Motherboard

X570 : 16x Gen 4

X470 : 2x Gen 3, 8x Gen 2

NMVe Support

Boot, RAID0, RAID1, RAID10

System Memory Type

DDR4

Memory Channels

2

Max. Memory

128 GB

System Memory Subtype

UDIMM

System Memory Specification

Up to 3200 MT/s

Max Memory Speed

2x1R : DDR4-3200

2x2R : DDR4-3200

4x1R : DDR4-2933

4x2R : DDR4-2667

ECC Support

Yes (Requires mobo support)

Graphics Capabilities

Graphics Model

Discrete Graphics Card Required
