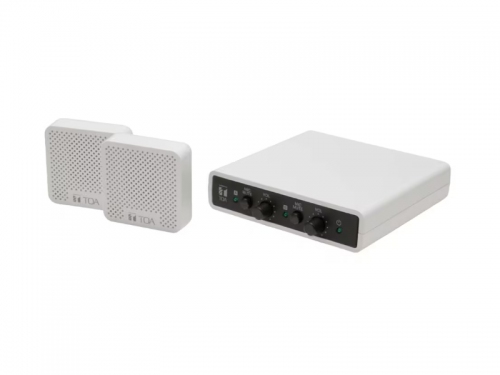

TOA WINDOW INTERCOM SYSTEM - NF-2S

Model Number

NF-2S

Unit

1unit

Power Source (V,Hz)

AC 100-240, 50/60 (use of the supplied AC adapter)

Rated Output (W)

1.7

Current Consumption (A)

0.2

Signal to Noise Ratio (dB)

73 or more (volume: min.), 70 or more (volume: max.)

Mic Input

-30dB (*2) ø3.5 mm mini jack (4P), Phantom power supply

Speaker Output

16 Ω ø3.5 mm mini jack (4P)

Control Input

External mute input: No-voltage make contact inputs, open voltage: 9 V DC or less, Short-circuit current: 5 mA or less, push-in terminal block (2 pins)

Indicators

Power indicator LED, Signal indicator LED

Operating Temperature (°C)

0 to +40

Operating Humidity (%RH)

85 or less (no condensation)

Finish

Base Unit: (Case) ABS resin, white, paint, (Panel) ABS resin, black, paint Sub-Unit: ABS resin, white, paint

Dimensions (WxHxD) (mm)

Base Unit: 127x30x137, Sub-Unit: 60x60x22.5

Accessory

AC adapter (*3) x 1, Power Cord (*3) x 1, Dedicated Cable (4 pins, 2 m) x 2, Metal Plate x 2, Rubber foot for Base Unit x 4, Mounting Base x 4, Zip Tie x 4

Optional Accessory

Expansion Set - NF-CS1 5M Extension Cable: YR-NF5S
