Brand
|
Gigabyte
|
|
Model
|

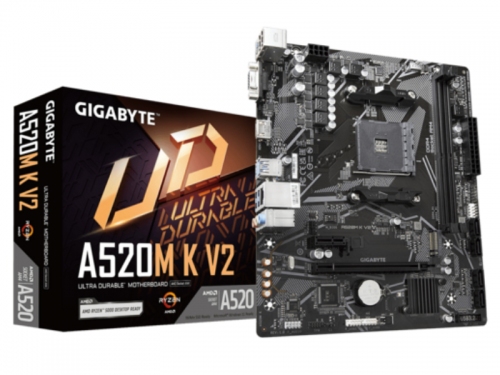

A520M K V2
|
|
CPU
|
AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
(Silahkan lihat "CPU Support List" untuk informasi lebih lanjut.)
|
|
Chipset
|
AMD A520
|
|
Form Factor
|
Micro ATX Form Factor; 23.3cm x 19.8cm
|
|
Memory
|
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Silahkan lihat "Memory Support List" untuk informasi lebih lanjut.)
|
|
Onboard Graphics
|
Integrated Graphics Processor:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Dukungan untuk versi HDMI 2.1, HDCP 2.3, dan HDR.
Maximum shared memory of 16 GB
|
|
Audio
|
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* Anda dapat mengubah fungsi jack audio menggunakan software audio. Untuk mengonfigurasi audio 7.1-channel, akses software audio untuk pengaturan audio.
|
|
LAN
|
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
|
|
Expansion Slots
|
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
|
|
Storage Interface
|
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
- 4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
|
|
USB
|
CPU:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 6 x USB 2.0/1.1 ports (2 port pada panel belakang, 4 port tersedia melalui header internal USB)
|
|
Internal I/O Connectors
|
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x system fan header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2x6 pin, hanya untuk modul GC-TPM2.0_S)
- 1 x speaker header
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header
|
|
Back Panel Connectors
|
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 4 x USB 3.2 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
|
|
I/O Controller
|
iTE® I/O Controller Chip
|
|
H/W Monitoring
|
- Voltage detection
- Temperature detection
- Fan speed detection
- Fan fail warning
- Fan speed control
* Fungsi kontrol kecepatan kipas didukung akan bergantung pada pendingin yang Anda pasang.
|
|
BIOS
|
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
|
Unique Features
|
- Support for APP Center
* Aplikasi yang tersedia di APP Center dapat bervariasi tergantung model motherboard. Fungsi yang didukung setiap aplikasi juga dapat bervariasi tergantung spesifikasi motherboard.
@BIOS
EasyTune
Smart Backup
System Information Viewer
- Support for Q-Flash
- Support for Xpress Install
|
|
Bundled Software
|
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
|
|
Operating System
|
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
|
