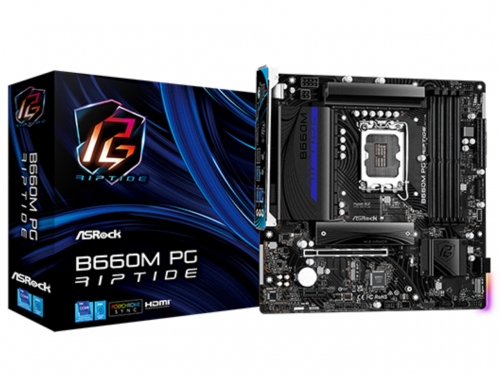

ASROCK B660M PG RIPTIDE (LGA1700, B660, DDR4, USB3.2, SATA3)

Form Factor

Micro-ATX (24.4 x 24.4 cm)

Chipset

Intel® B660

CPU Support

Intel® Core™ Gen 12/13/14 (Socket LGA1700)
Mendukung teknologi Intel Hybrid & Turbo Boost Max 3.0

Power Design

15 Phase Power Digi Power

Memori

4× DDR4 DIMM (Dual Channel), hingga 128GB
Mendukung hingga DDR4-5333+(OC)
ECC/Non-ECC (berjalan di mode non-ECC)

Grafis (iGPU)

HDMI 2.1: hingga 4K@60Hz
DisplayPort 1.4: hingga 8K@60Hz (DSC) – hanya aktif jika CPU memiliki iGPU Intel Xe

Slot Ekspansi

1× PCIe 4.0 x16 (CPU)
1× PCIe 3.0 x1 (chipset)
1× M.2 (Key E) untuk Wi-Fi/BT

Storage

2× M.2 PCIe Gen4x4 (M2_1 dari CPU, M2_2 dari chipset)
4× SATA 6Gb/s
Mendukung RAID 0/1/5/10 (SATA)

Intel Optane

Mendukung Optane Memory H Series (M2_2) & Intel VMD

Audio

Realtek ALC897, 7.1 CH HD Audio + Nahimic Audio + Surge Protection

LAN

2.5 Gigabit LAN (Dragon RTL8125BG) + software Phantom Gaming LAN

Header RGB

1× RGB Header 12V
3× ARGB Header 5V

Fan Header

- 1× CPU Fan
1× CPU/Water Pump
3× Chassis/Water Pump
Kontrol kecepatan otomatis dan deteksi pin 3/4

Konektor Daya

1× 24-pin ATX
1× 8-pin 12V
1× 4-pin 12V

USB Internal

- 1× USB 3.2 Gen1 header (2 port)
- 1× USB 3.2 Gen1 Type-C header
- 1× USB 2.0 header (2 port)

Rear I/O

- 1× PS/2
- 1× HDMI
- 1× DisplayPort
- 4× USB 3.2 Gen1
- 4× USB 2.0
- 1× RJ45
- 3× Audio Jack
- 2× WiFi antenna mounting

BIOS

256Mb AMI UEFI BIOS dengan GUI multibahasa, pengaturan voltase lengkap, RAID Installer, Easy Driver Installer

Fitur Khusus

- ASRock Super Alloy
- Heatsink M.2 Cakupan Penuh
- ASRock Steel Slot
- POST Status Checker (PSC)
- Driver Auto Installer

Aksesoris

2× SATA Cable, 2× Sekrup M.2

OS Support

Windows 10/11 64-bit

Sertifikasi

CE, FCC, ErP Ready
